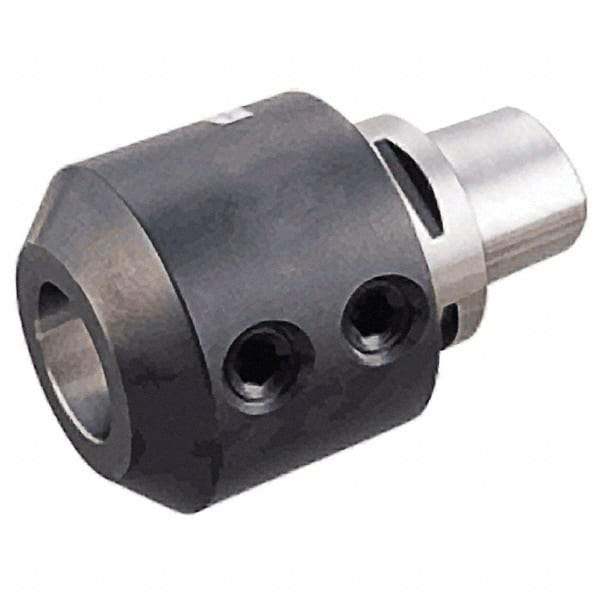

Iscar - C8 Modular Connection 50mm Hole End Mill Holder/Adapter - 98mm Nose Diam, 120mm Projection, Through-Spindle Coolant
Item #: 30726285
Brand: Iscar
Model #: 4561534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Hole Diameter (mm) | 50.00 |
| Nose Diameter (mm) | 98.00 |
| Projection (mm) | 120.00 |
| Projection (Decimal Inch) | 4.7244 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 90.00 |
| Clamping Depth (Decimal Inch) | 3.5433 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M20 |
