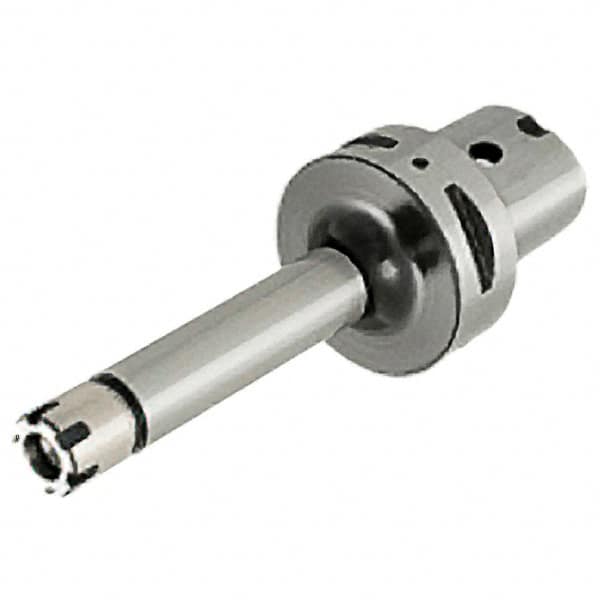

Iscar - 0.5mm to 10mm Capacity, 130mm Projection, Modular Connection, ER16 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30725782
Brand: Iscar
Model #: 4561469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Projection (mm) | 130.00 |
| Projection (Decimal Inch) | 5.1181 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
