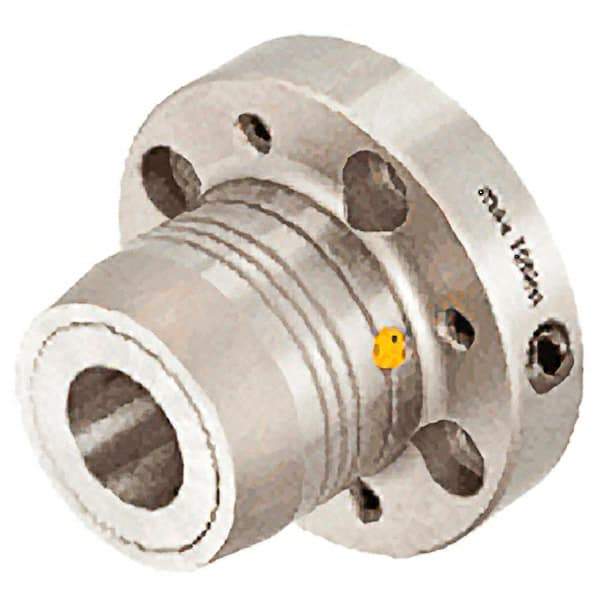

Iscar - D70 Flange, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 38mm Nose Diam, 50mm Projection, 52mm Clamp Depth, Through Coolant
Item #: 30723142
Brand: Iscar
Model #: 4559419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Flange |
| Connection Size | D70 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.4961 |
| Nose Diameter (mm) | 38.00 |
| Projection (Decimal Inch) | 1.9685 |
| Projection (mm) | 50.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 52.00 |
| Clamping Depth (Decimal Inch) | 2.0472 |
| Overall Length (mm) | 60.00 |
| Overall Length (Decimal Inch) | 2.3622 |
