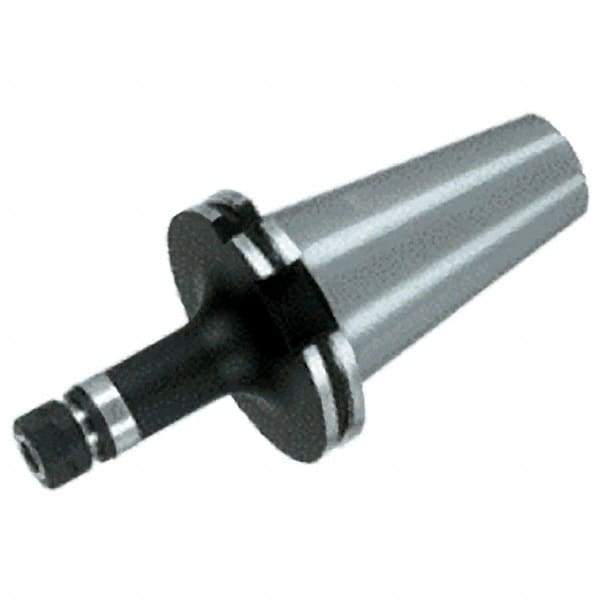

Iscar - DIN69871-40 Taper Shank Tapping Chuck/Holder - M6 to M28 Tap Capacity, 130.6mm Projection
Item #: 30720528
Brand: Iscar
Model #: 4545016
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DIN69871-40 |
| Minimum Tap Capacity (mm) | M6 |
| Maximum Tap Capacity (mm) | M28 |
| Projection (Decimal Inch) | 5.1417 |
| Projection (mm) | 130.60 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 3.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Maximum Collet Capacity (Decimal Inch) | 1.0236 |
| Maximum Collet Capacity (mm) | 26.00 |
| Collet System | ER Tap |
| Collet Series | ER 40 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Through Coolant | No |
