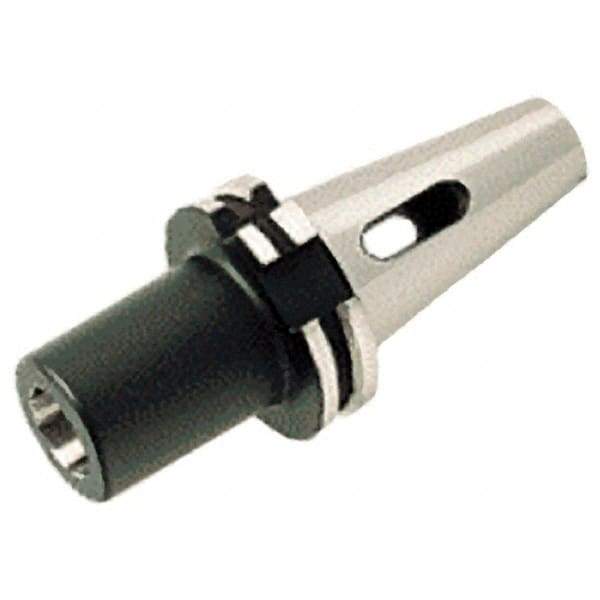

Iscar - DIN69871-40 Outside Taper, 3MT Inside Taper, DIN69871 to Morse Taper Adapter - 70mm Projection, 40mm Nose Diam, 0.0002" TIR
Item #: 30720205
Brand: Iscar
Model #: 4539002
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to Morse |
| Outside Taper Size | DIN69871-40 |
| Inside Taper Size | 3MT |
| Projection (Decimal Inch) | 2.7559 |
| Projection (mm) | 70.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Nose Diameter (mm) | 40.00 |
| TIR (Decimal Inch) | 0.0002 |
| Retention Knob Thread Size | M16 |
