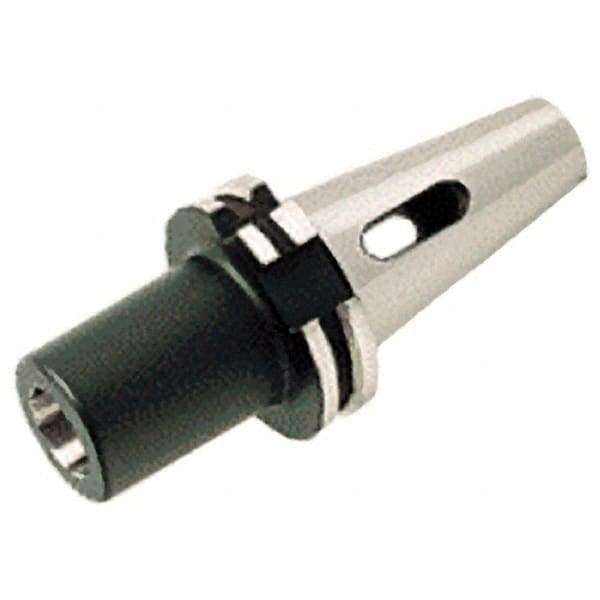

Iscar - DIN69871-50 Outside Taper, 1MT Inside Taper, DIN69871 to Morse Taper Adapter - 45mm Projection, 25mm Nose Diam, 0.0002" TIR
Item #: 30720189
Brand: Iscar
Model #: 4539017
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to Morse |
| Outside Taper Size | DIN69871-50 |
| Inside Taper Size | 1MT |
| Projection (Decimal Inch) | 1.7717 |
| Projection (mm) | 45.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 0.9843 |
| Nose Diameter (mm) | 25.00 |
| TIR (Decimal Inch) | 0.0002 |
| Retention Knob Thread Size | M24 |
