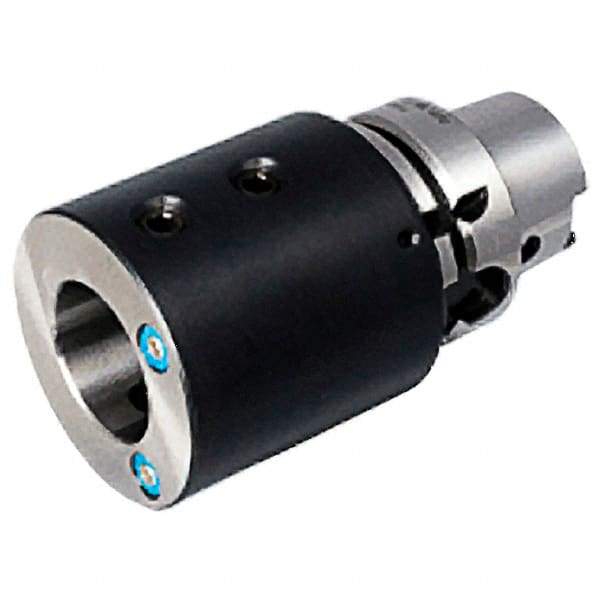

Iscar - 40mm Bore Diam, 82mm Body Diam x 115mm Body Length, Boring Bar Holder & Adapter - 0.4724" Screw Thread Lock, 71mm Bore Depth, Internal Coolant
Item #: 30718282
Brand: Iscar
Model #: 4509932
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 40.0000 |
| Bore Diameter (Decimal Inch) | 1.5748 |
| Connection Size | HSK100A |
| Body Diameter (mm) | 82.00 |
| Body Diameter (Decimal Inch) | 3.2283 |
| Body Length (mm) | 115.00 |
| Body Length (Decimal Inch) | 4.5276 |
| Lock Screw Size (mm) | 12.00 |
| Lock Screw Size (Decimal Inch) | 0.4724 |
| Bore Depth (mm) | 71.00 |
| Bore Depth (Decimal Inch) | 2.7953 |
| Coolant Type | Internal |
