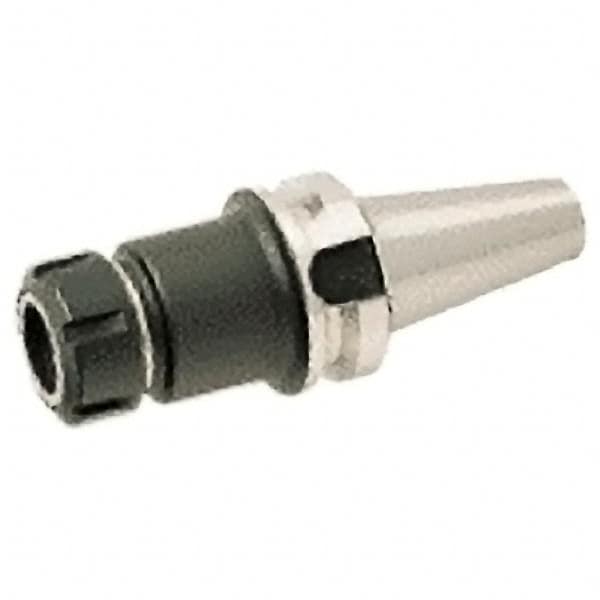

Iscar - 70mm Projection, BT40 Taper Shank, ER16 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30718142
Brand: Iscar
Model #: 4509855
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (mm) | 70.00 |
| Projection (Decimal Inch) | 2.7600 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 28.00 |
| Nose Diameter (Decimal Inch) | 1.1024 |
| PSC Code | 5136 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
