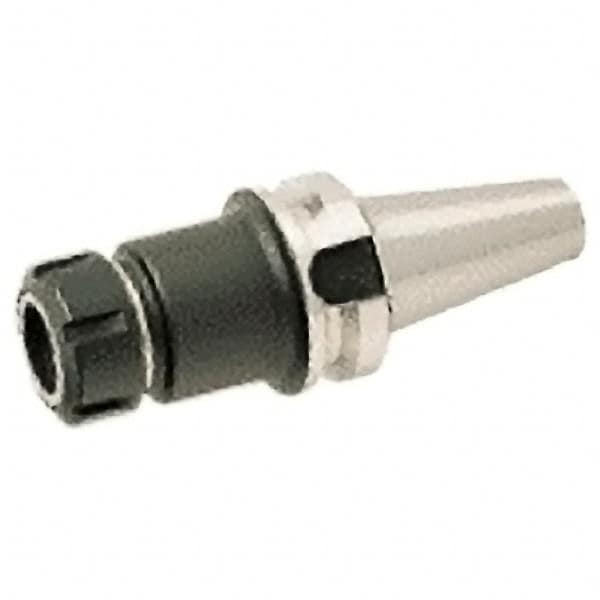

Iscar - 150mm Projection, BT50 Taper Shank, ER32 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30717987
Brand: Iscar
Model #: 4509861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (mm) | 150.00 |
| Projection (Decimal Inch) | 5.9055 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
