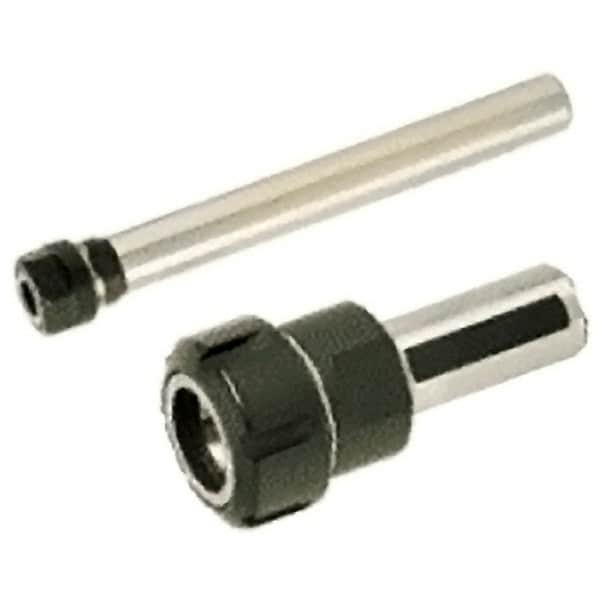

Iscar - 3mm to 26mm Capacity, 60mm Projection, Straight Shank, ER40 Collet Chuck - 110mm OAL, 25mm Shank Diam
Item #: 30717326
Brand: Iscar
Model #: 4508005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 26.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.0236 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Actuator Type | Wrench |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle |
