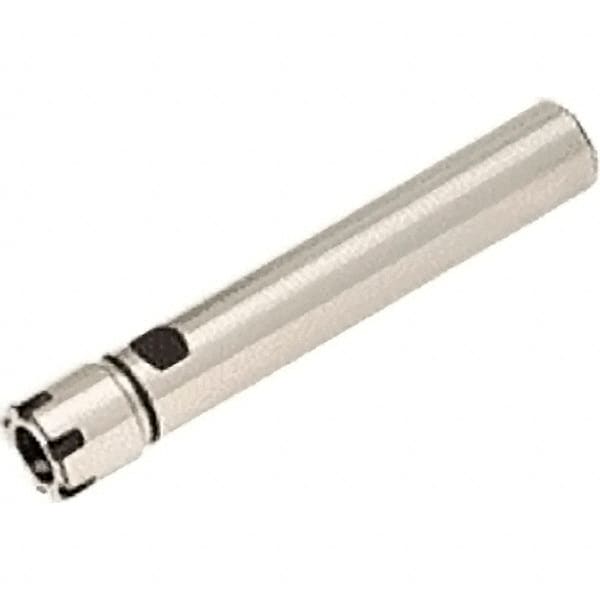

Iscar - 0.5mm to 10mm Capacity, 36.5mm Projection, Straight Shank, ER16 Collet Chuck - 116.5mm OAL, 12mm Shank Diam
Item #: 30716666
Brand: Iscar
Model #: 4506008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Projection (mm) | 36.50 |
| Projection (Decimal Inch) | 1.4370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 116.50 |
| Overall Length (Decimal Inch) | 4.5866 |
| Actuator Type | Wrench |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle |
