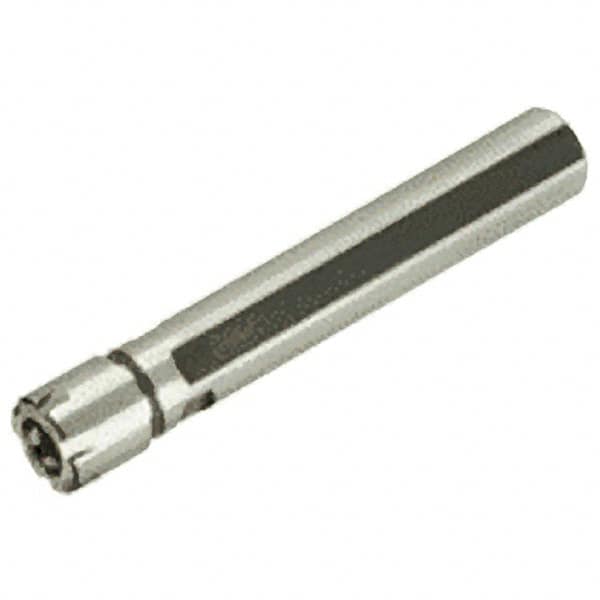

Iscar - 0.5mm to 7mm Capacity, 18.5mm Projection, Straight Shank, ER11 Collet Chuck - 158.5mm OAL, 16mm Shank Diam
Item #: 30712301
Brand: Iscar
Model #: 4501984
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER11 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Projection (mm) | 18.50 |
| Projection (Decimal Inch) | 0.7283 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 7.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.2756 |
| Overall Length (mm) | 158.50 |
| Overall Length (Decimal Inch) | 6.2402 |
| Actuator Type | Wrench |
| Shank Length (mm) | 140.00 |
| Shank Length (Decimal Inch) | 5.5118 |
| Nose Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 0.6299 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0050 |
| Coolant Type | Through-Spindle |
