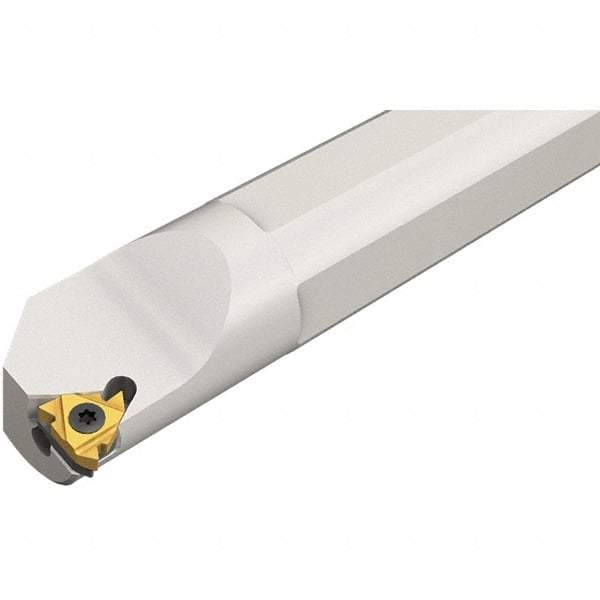

Iscar - Internal Thread, Right Hand Cut, 50mm Shank Width x 50mm Shank Height Indexable Threading Toolholder - 350mm OAL, 27IR.. Insert Compatibility, SI Toolholder, Series IscarThread
Item #: 30711246
Brand: Iscar
Model #: 3800069
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Overall Length (mm) | 350.00 |
| Insert Compatibility | 27IR.. |
| Series | IscarThread |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 31.60 |
| Center to Cutting Edge (Decimal Inch) | 1.2441 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Minimum Bore Diameter (Decimal Inch) | 2.2835 |
| Insert Inscribed Circle (mm) | 15.88 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
