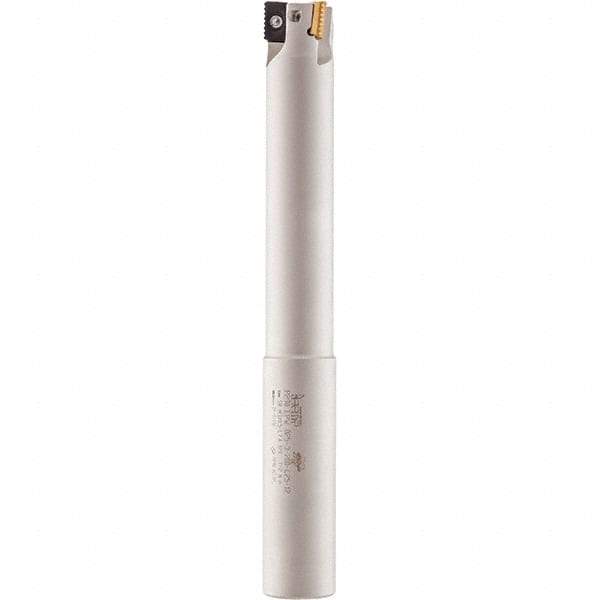

Iscar - 1-1/2" Cut Diam, 0.708" Max Depth of Cut, 2.559" OAL, Indexable Square Shoulder End Mill - P290 AC.T 1806.. Inserts, M16 Modular Connection, 0° Lead Angle, Through Coolant, Series MillShred
Item #: 30709174
Brand: Iscar
Model #: 3110798
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (Decimal Inch) | 2.5590 |
| Lead Angle | 0 |
| Series | MillShred |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.7080 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | P290 EPW-M |
| Head Length (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Insert Compatibility | P290 AC.T 1806.. |
| Shank Length (Decimal Inch) | 0.9800 |
