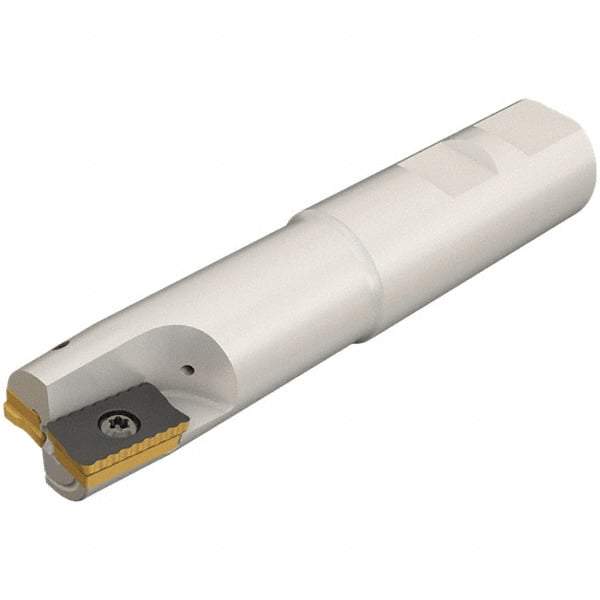

Iscar - 40mm Cut Diam, 18mm Max Depth of Cut, 32mm Shank Diam, 170mm OAL, Indexable Square Shoulder End Mill - P290 AC.T 1806.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series MillShred
Item #: 30709141
Brand: Iscar
Model #: 3110792
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 170.00 |
| Overall Length/Projection (Decimal Inch) | 6.6929 |
| Lead Angle | 0 |
| Series | MillShred |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | P290 EPW |
| Weldon Flat | Yes |
| Insert Compatibility | P290 AC.T 1806.. |
