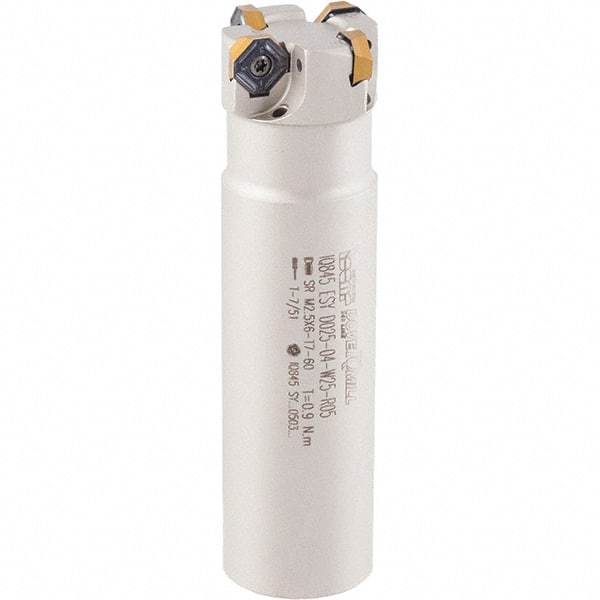

Iscar - 16mm Cut Diam, 5mm Max Depth of Cut, 16mm Shank Diam, 100mm OAL, Indexable Square Shoulder Helical End Mill - HM390 TCKT 0703PCTR Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 30708135
Brand: Iscar
Model #: 3106701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (mm) | 100.00 |
| Overall Length/Projection (Decimal Inch) | 3.9370 |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETC-07 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Weldon Flat | No |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Shank Length (Decimal Inch) | 2.9134 |
| Shank Length (mm) | 74.00 |
