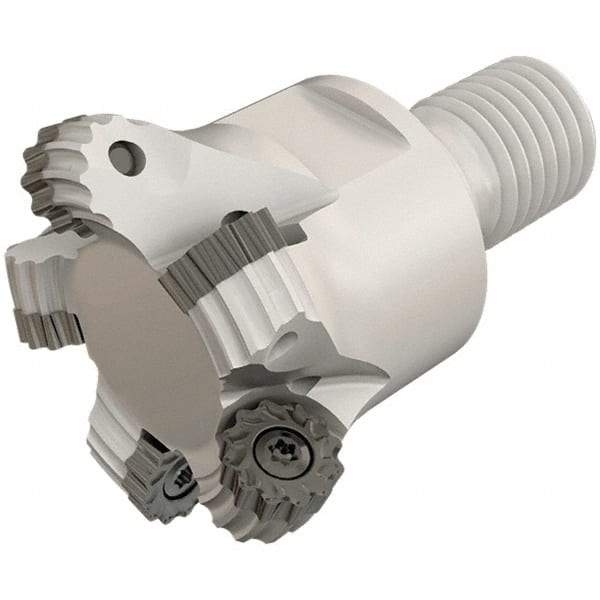

Iscar - 0.984" Cutting Diam, Modular Connection Indexable Copy End Mill - 3 Inserts, RCMT/RCCT-MO, RCMT/RCMW/RCCW-FW, RCMW/RCCW-MO Insert, ERW-M Toolholder, Through Coolant
Item #: 30707897
Brand: Iscar
Model #: 3106280
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 3 |
| Insert Style | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
| Toolholder Style | ERW-M |
| Series | FlexFit; MillShred |
| Overall Length (mm) | 30.00 |
| Insert Diameter (Decimal Inch) | 0.3940 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.1810 |
| Shank Length (Decimal Inch) | 0.8700 |
| Modular Connection Size | M12 |
