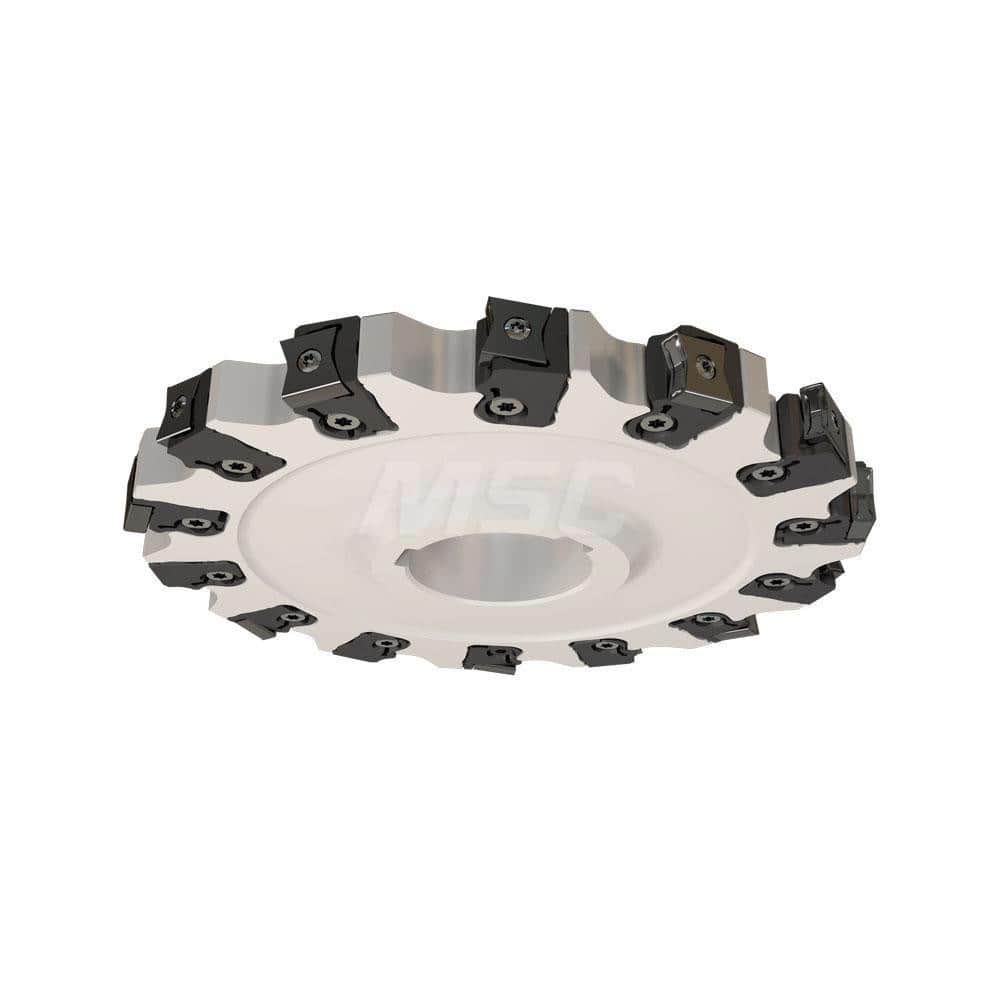

Indexable Slotting Cutter: 0.7441'' Cutting Width, 6.2992'' Cutter Dia, Arbor Hole Connection, 2.0472'' Depth of Cut, 1.5748'' Hole Screw, Uses 10 LN Inserts, 10 Teeth, Staggered
Item #: 30707376
Brand: Iscar
Model #: 3103765
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 18.90 |
| Cutting Width (Decimal Inch) | 0.7441 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Maximum Depth of Cut (mm) | 48.50 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Cutter Diameter (mm) | 160.00 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | LN |
| Compatible Insert Size Code | 1506 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered |
| Series | TangMill (SDN-CALN15) |
| Toolholder Style | SDN-CALN15; SDN-CALN12 |
| Hub Diameter (Decimal Inch) | 2.2047 |
| Hub Diameter (mm) | 56.00 |
| Tool Application | Milling |
| Maximum Cutting Width (Decimal Inch) | 1.0079 |
| Maximum Cutting Width (mm) | 25.60 |
| Radius | No |
| Number Of Teeth | 10 |
| Complete Insert Compatibility | LNMW 1506 PNTN; LNHT 1506PN-N-HT-S; LNHT 1506PNTN HT; LNMT 1506PN-N HT; LNKX 1506PN-N PL; LNKX 150612-PNTN; LNMT 1506PN-N MM; LNMT 1506PNTN; LNKX 1506PN-N MM; LNKX 1506PNTN; LNMT 1506PNTN-HT |
