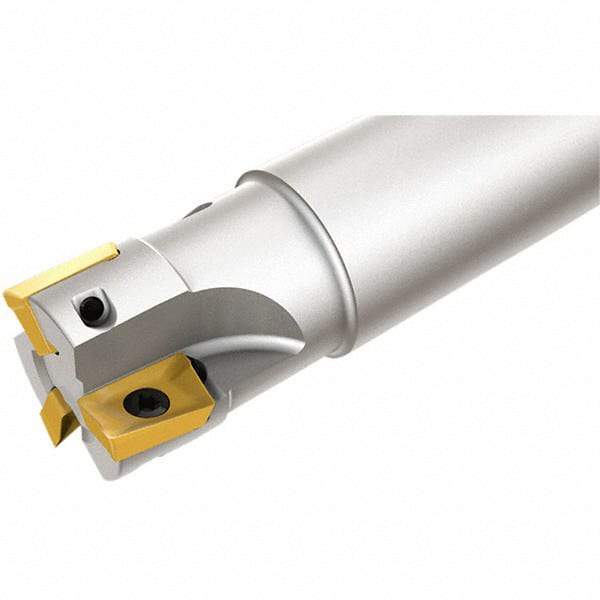

Iscar - 32mm Cut Diam, 10mm Max Depth of Cut, 25mm Shank Diam, 95mm OAL, Indexable Square Shoulder End Mill - AP.. 1003.. Inserts, Weldon Shank, 0° Lead Angle, Series Heli2000
Item #: 30707343
Brand: Iscar
Model #: 3101891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 95.00 |
| Overall Length/Projection (Decimal Inch) | 3.7402 |
| Lead Angle | 0 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-10 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Weldon Flat | Yes |
| Insert Compatibility | AP.. 1003.. |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.00 |
| Maximum RPM | 35350 |
