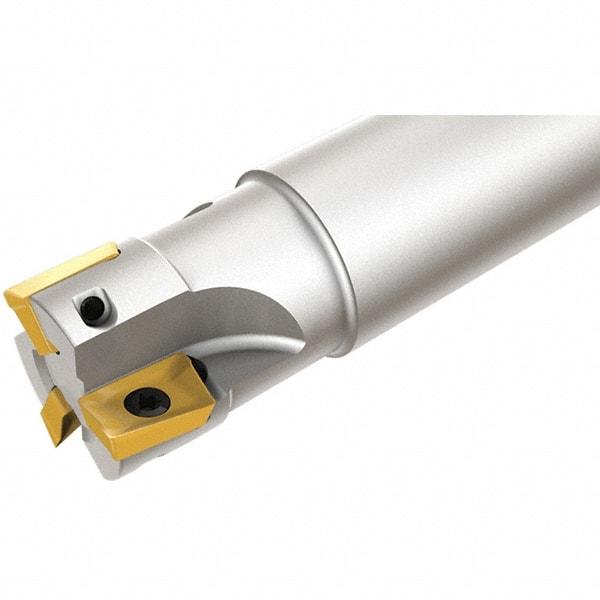

Iscar - 40mm Cut Diam, 10mm Max Depth of Cut, 32mm Shank Diam, 130mm OAL, Indexable Square Shoulder End Mill - AP.. 1003.. Inserts, Cylindrical Shank, 0° Lead Angle, Series Heli2000
Item #: 30707061
Brand: Iscar
Model #: 3101872
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Lead Angle | 0 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-10 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Weldon Flat | No |
| Insert Compatibility | AP.. 1003.. |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
| Maximum RPM | 31600 |
