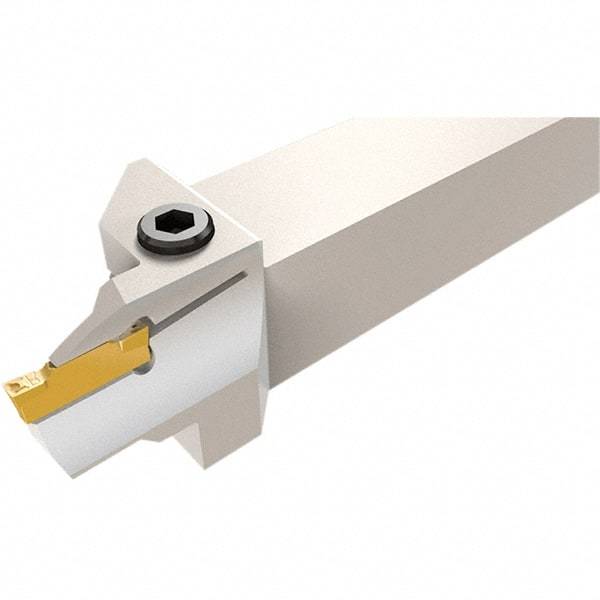

Iscar - HFH, External, Left Hand, 12mm Max Depth of Cut, 3mm Max Groove Width, Indexable Grooving Tool Holder - HFPL 30.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 30705818
Brand: Iscar
Model #: 2500016
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | HFH |
| Insert Compatibility | HFPL 30.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 25.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0039 |
| Maximum Groove Outside Diameter (mm) | 38.00 |
| Minimum Axial Groove Inside Diameter(mm) | 30.00 |
| Head Height (Decimal Inch) | 1.3386 |
| Head Height (mm) | 34.00 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 112.00 |
| Shank Length (Decimal Inch) | 4.4094 |
| Complete Insert Compatibility | HFPL 3003; HFPL 3015 |
| Minimum BoreDiameter (mm) | 30.00 |
