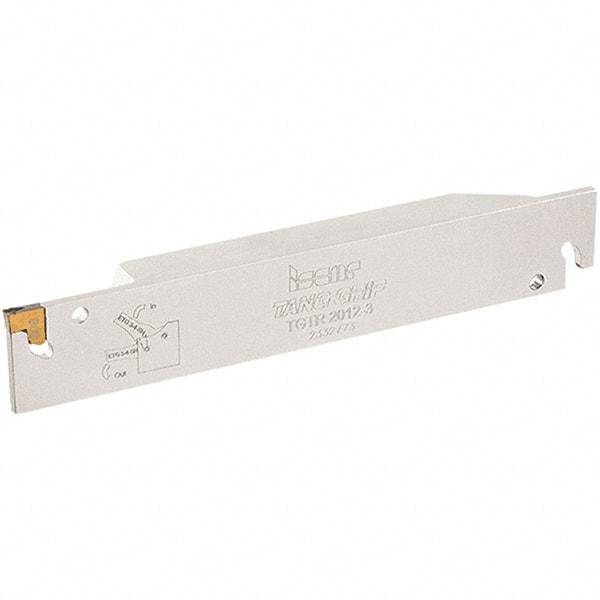

Iscar - External Thread, 3.7mm Min Groove Width, 150mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 30705693
Brand: Iscar
Model #: 2302874
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1457 |
| Minimum Groove Width (mm) | 3.70 |
| Maximum Groove Width (Decimal Inch) | 0.1772 |
| Maximum Groove Width (mm) | 4.50 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Shank Length (Decimal Inch) | 5.9055 |
| Shank Length (mm) | 150.00 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N-UT; TAG N3.2JT; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
