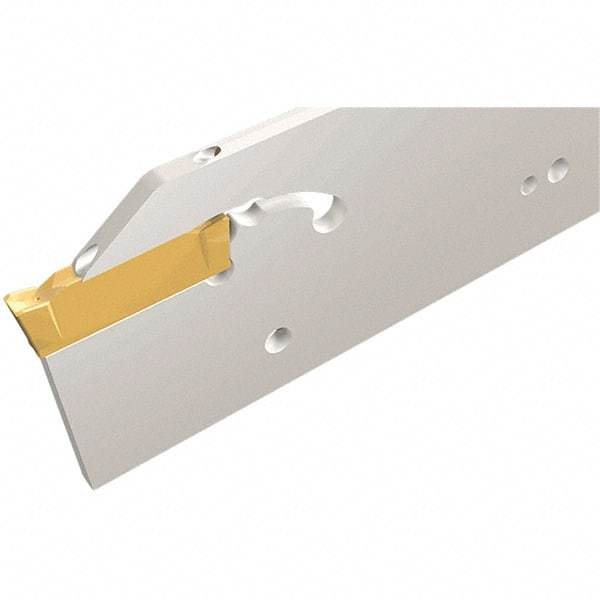

Iscar - External Thread, 150mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, DGN Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 30705420
Brand: Iscar
Model #: 2302551
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DGN |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7520 |
| Head Length (mm) | 41.30 |
| Head Length (Decimal Inch) | 1.6260 |
| Shank Length (Decimal Inch) | 4.2795 |
| Shank Length (mm) | 108.70 |
| Complete Insert Compatibility | DGN 2002C-XL; DGN 2002J-XL |
