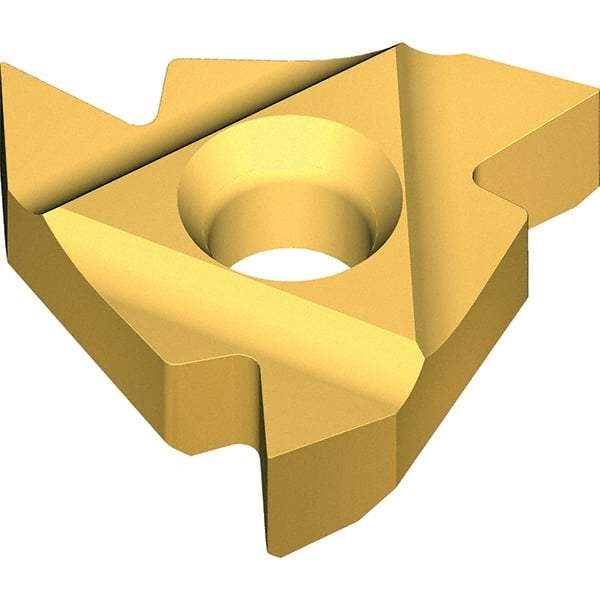

Vargus - 5IL0.625 Grade VKX, Internal Partial 60 Threading Insert - 5.5 to 6mm & 4-1/2 to 4 TPI Int Pitch, TiN Finish, Carbide
Item #: 30693154
Brand: Vargus
Model #: 59013
Exact Tooling IR#: 04
Features and Benefits
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness-resistance allows the tool to run at higher speeds than uncoated tools.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 5IL |
| Insert Size | 0.625 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Thread Standard | Partial 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Internal Pitch/TPI | 5.5-6.0 mm; 4.5-4 TPI |
| Coating | TiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Manufacturers Catalog Number | 5ILQ60 VKX |
