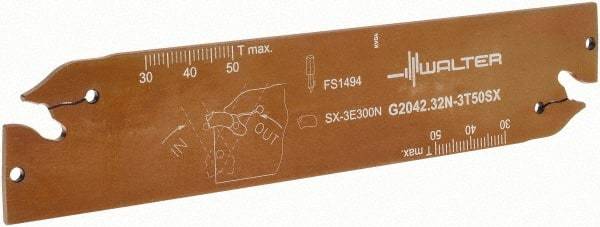

Walter - 1.2598" Blade Height, 5.9055" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 50mm Max Depth of Cut, G2042 N Blade
Item #: 30657282
Brand: Walter
Model #: 6408745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | G2042 N |
| Insert Style | SX-3.. |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 50.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.9685 |
| Cutting Height (mm) | 24.70 |
| Cutting Height (Decimal Inch) | 0.9724 |
| Complete Insert Compatibility | SX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
