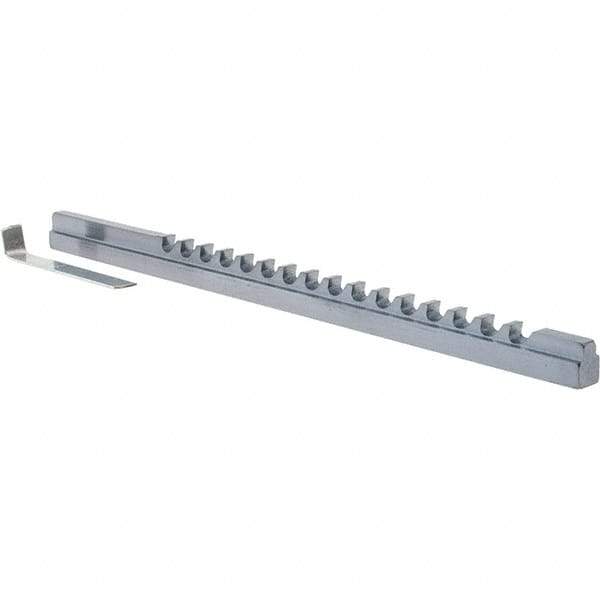

Dumont Minute Man - 4mm Keyway Width, Style B-1, Keyway Broach - High Speed Steel, TiAlN Finish, 1/4" Broach Body Width, 19/64" to 1-11/16" LOC, 6" OAL
Item #: 30419873
Brand: Dumont Minute Man
Model #: 44803
Exact Tooling IR#: 04
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Keyway Broach Type | Keyway |
| Keyway Width (mm) | 4 |
| Broach Style | B-1 |
| Broach Material | High Speed Steel |
| Broach Coating | TiAlN |
| Broach Body Width (Inch) | 1/4 |
| Minimum Length of Cut (Inch) | 19/64 |
| Maximum Length of Cut (Inch) | 1-11/16 |
| Overall Length (Inch) | 6 |
