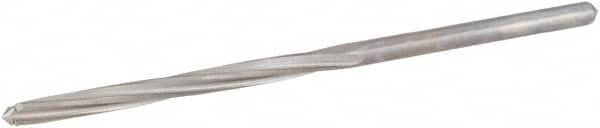

Hertel - 1/16" High Speed Steel 4 Flute Chucking Reamer - Spiral Flute, 0.0635" Straight Shank, 1/2" Flute Length, 1-7/8" OAL
Item #: 30161608
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.0625 |
| Reamer Diameter (Inch) | 1/16 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (Inch) | 1-7/8 |
| Flute Length (Inch) | 1/2 |
| Number of Flutes | 4 |
| Minimum Shank Diameter (Decimal Inch) | 0.0615 |
| Maximum Shank Diameter (Decimal Inch) | 0.0635 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
