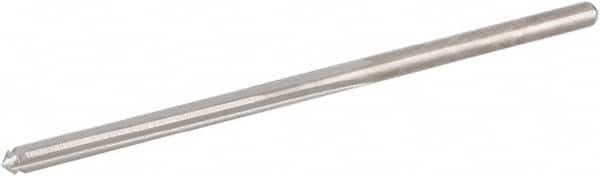

Hertel - #45 High Speed Steel 4 Flute Chucking Reamer - Straight Flute, Straight Shank, 3/4" Flute Length, 2-1/8" OAL
Item #: 30151005
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Wire) | #45 |
| Reamer Diameter (Decimal Inch) | 0.0820 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 2-1/8 |
| Flute Length (Inch) | 3/4 |
| Number of Flutes | 4 |
| Minimum Shank Diameter (Decimal Inch) | 0.0810 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
