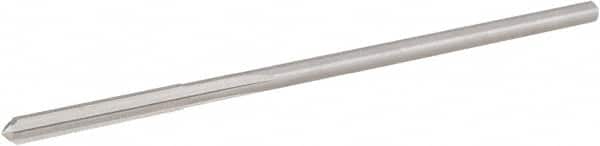

Hertel - #54 Cobalt 4 Flute Chucking Reamer - Straight Flute, 0.051" Straight Shank, 1/2" Flute Length, 2-1/2" OAL
Item #: 30146252
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Wire) | #54 |
| Reamer Diameter (Decimal Inch) | 0.0550 |
| Reamer Material | Cobalt |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 2-1/2 |
| Flute Length (Inch) | 1/2 |
| Flute Length (Decimal Inch) | 0.5000 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 4 |
| Minimum Shank Diameter (Decimal Inch) | 0.0500 |
| Maximum Shank Diameter (Decimal Inch) | 0.0510 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
