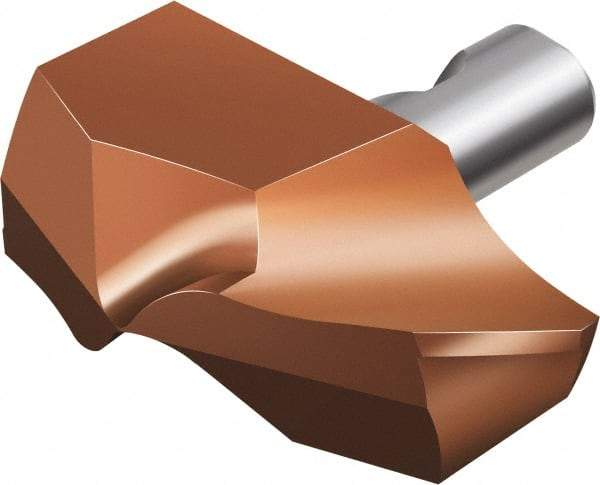

Sandvik Coromant - Series CoroDrill\xAE 870, 27mm Diam Grade 4234 142° Replaceable Drill Tip - Carbide, TiAlN Finish, 27 Seat Size, Through Coolant
Item #: 30140842
Brand: Sandvik Coromant
Model #: 6425903
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 27.00 |
| Diameter (Decimal Inch) | 1.0630 |
| Included Angle | 142 |
| Material | Carbide |
| Manufacturer's Grade | 4234 |
| Series | CoroDrill 870 |
| Coating | TiAlN |
| Insert Seat Size | 27 |
| Through Coolant | Through Coolant |
| Coating Process | PVD |
| Height (mm) | 17.00 |
| Height (Decimal Inch) | 0.6693 |
| Width (mm) | 9.26 |
| Insert Geometry | MM |
