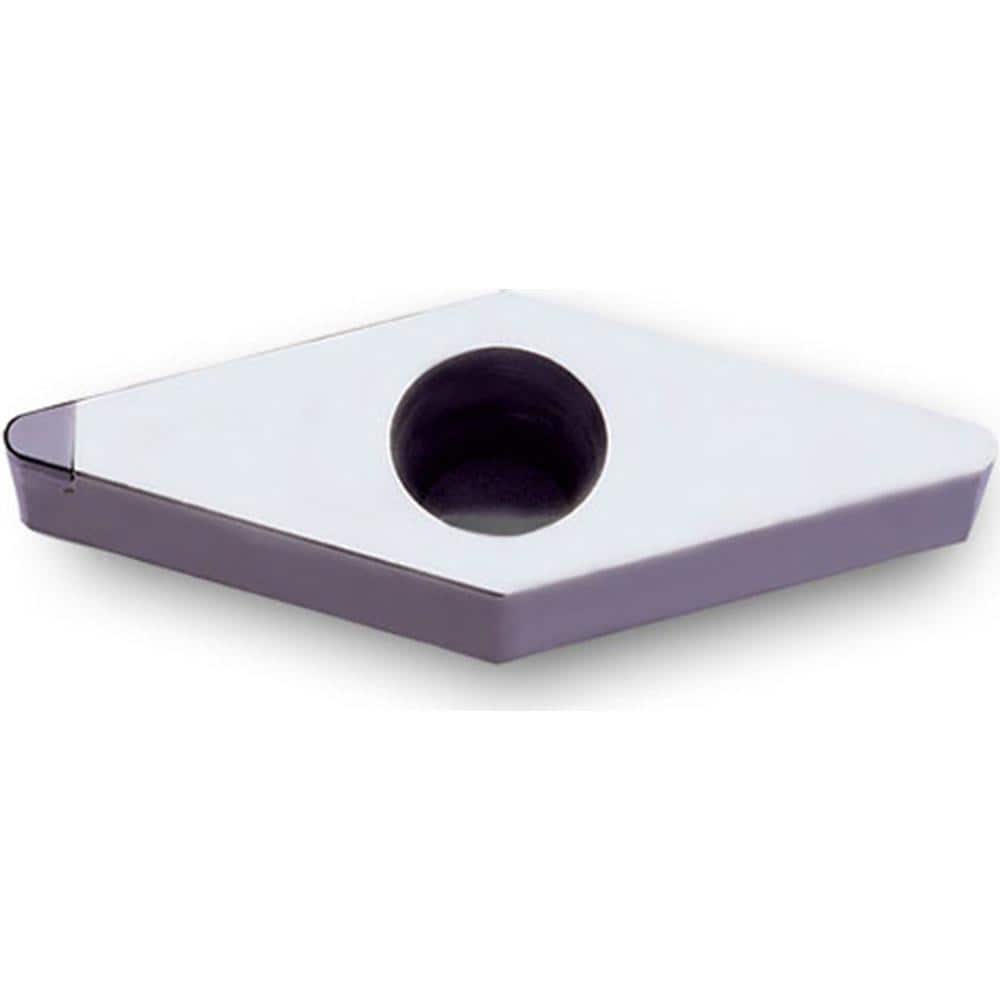

Turning Insert: VBGW330.5LS2 TB670, Cubic Boron Nitride Uncoated Finish, Neutral, 0.6540″ Long, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 35.0 ° N/A Diamond, Series VBGW
Item #: 29820727
Brand: Ingersoll Cutting Tools
Model #: 5403102
Product Specifications
| Insert Style | VBGW |
| Insert Shape Code | V |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | TB670 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1410 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBGW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hardened Steel |
| Primary Workpiece Material Code | H |
| Ansi Code | VBGW330.5LS2TB670 |
| Iso Code | VBGW160402LS2 TB670 |
| Chip Breaker | W |
| Coating/Finish | Uncoated |
