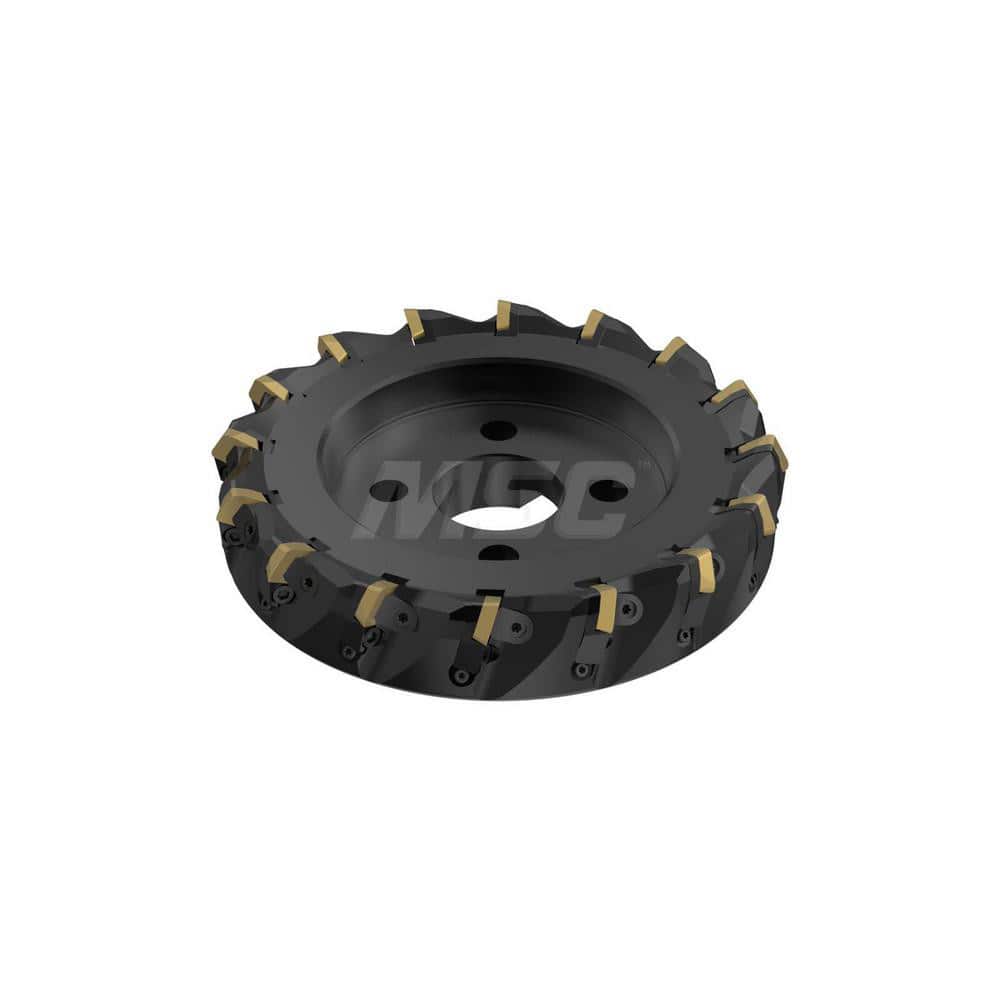

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 160.00; Maximum Cutting Diameter (mm): 174.30; Maximum Depth of Cut (mm): 12.00; Arbor Hole Diameter (mm): 40.00; Lead Angle: 60; Compatible Insert Size Code: SP..1906Z..R; Cutter Style:
Item #: 29496148
Brand: Seco
Model #: 00073311
Product Specifications
| Minimum Cutting Diameter (mm) | 160.00 |
| Maximum Cutting Diameter (mm) | 174.30 |
| Maximum Depth of Cut (mm) | 12.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 60 |
| Compatible Insert Size Code | SP..1906Z..R |
| Cutter Style | R220.69 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | 14 |
| Series | 14 |
| Hub Diameter (mm) | 128.00 |
| Keyway Width (mm) | 16.40 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Pitch Type | Super Close |
| Maximum RPM | 2300 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
