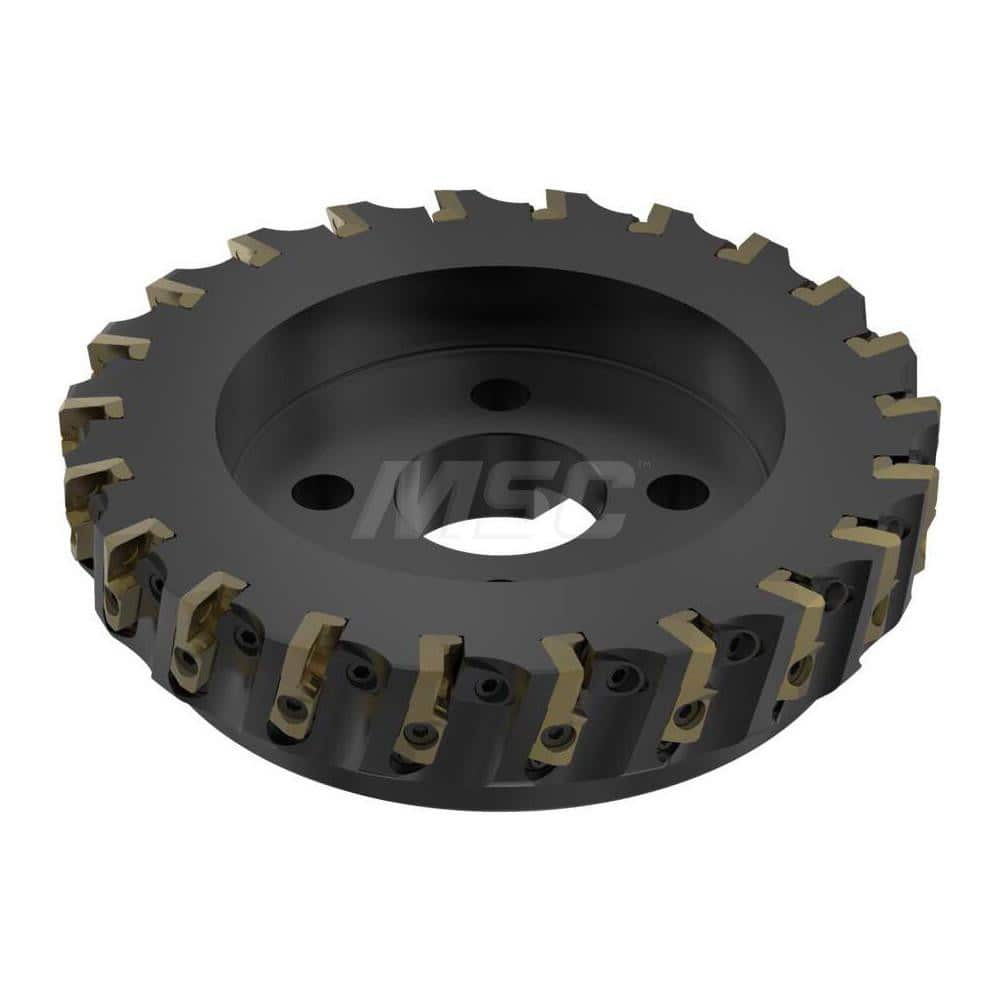

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 250.00; Maximum Cutting Diameter (mm): 250.00; Maximum Depth of Cut (mm): 1.00; Arbor Hole Diameter (mm): 60.00; Lead Angle: 88; Compatible Insert Size Code: SE..1203; Cutter Style: R220
Item #: 29496031
Brand: Seco
Model #: 75068855
Product Specifications
| Minimum Cutting Diameter (mm) | 250.00 |
| Maximum Cutting Diameter (mm) | 250.00 |
| Maximum Depth of Cut (mm) | 1.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 88 |
| Compatible Insert Size Code | SE..1203 |
| Cutter Style | R220.30 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Rake | Positive (Radial); Positive (Axial) |
| Rake Angle | 15 |
| Series | 15 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Pitch Type | Normal |
| Maximum RPM | 2700 |
| Tool Application | Facing |
| Tool Performance | High Performance |
| Number Of Cutter Inserts | 22 |
| Coolant Through | No |
