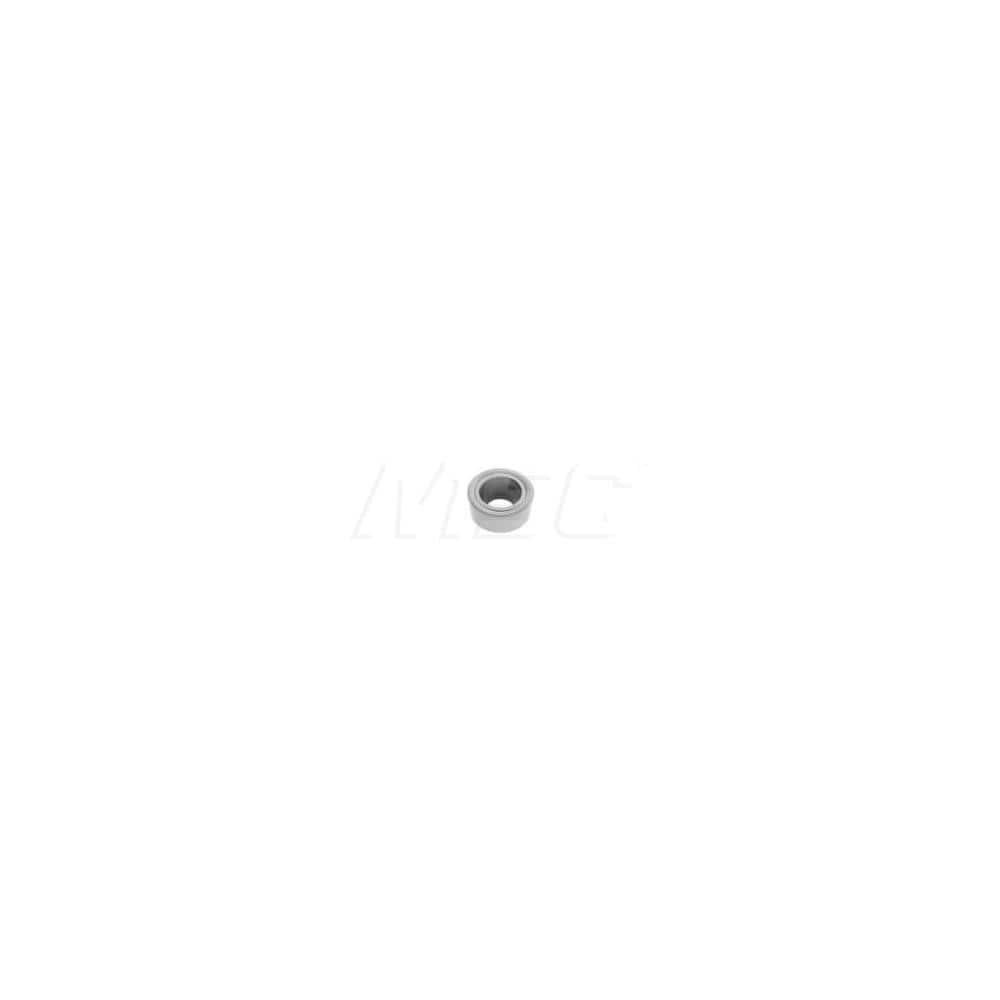

Turning Insert: RCMT0803M0-F1 TP3501, Solid Carbide TiCN, Al2O3 & Cr Finish, Neutral, 0.3150″ Long, 0.1575″ Corner Radius, 0.0 ° N/A Round, Series RCMT
Item #: 29455938
Brand: Seco
Model #: 03099666
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 0803 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP3501 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCMT |
| Coating Process | Duratomic |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RCMT0803M0F1 |
| Iso Code | RCMT0803M0-F1 |
| Chip Breaker | F1 |
| Coating/Finish | TiCN; Al2O3; Cr |
