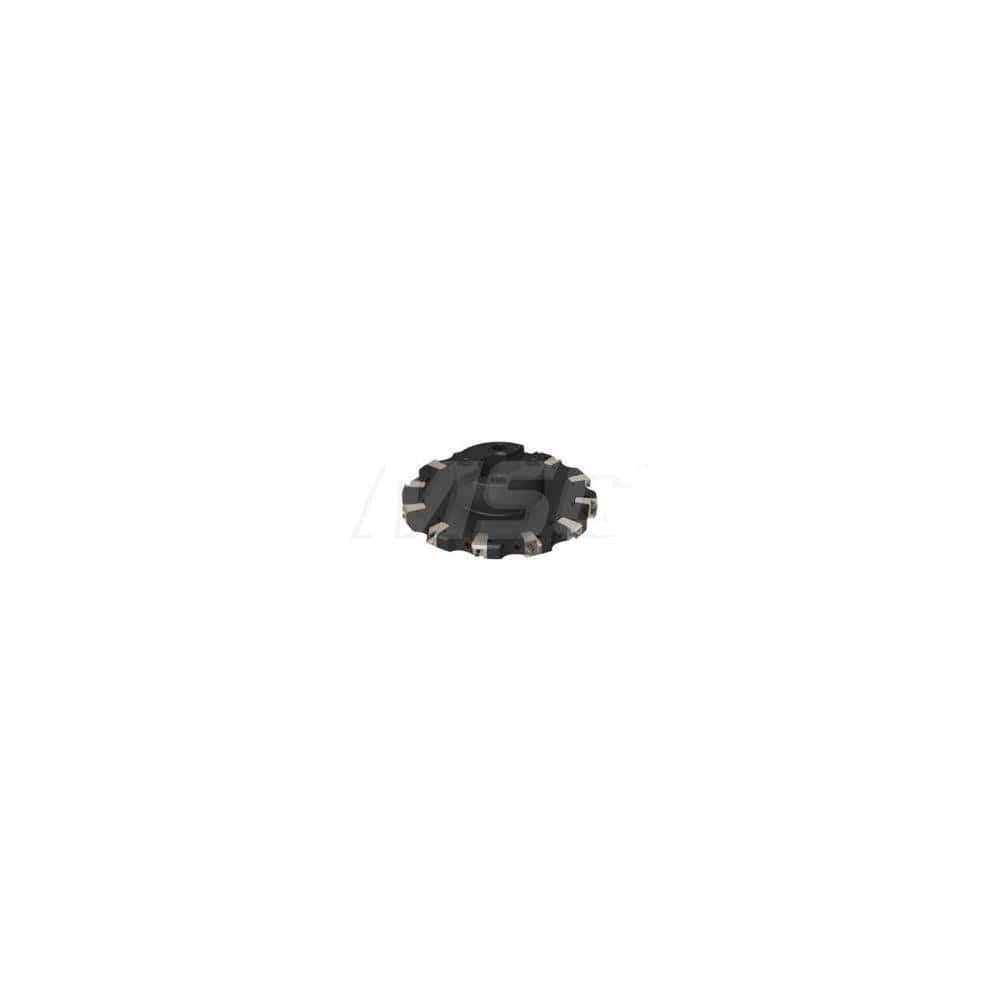

Indexable Slotting Cutter: 0.827'' Cutting Width, 8'' Cutter Dia, Arbor Hole Connection, 2.21'' Depth of Cut, 1.5'' Hole, Right Hand Cut Screw, Uses 12 XNHQ Inserts, 6 Teeth, Staggered, Positive, Steel, Ni Finish
Item #: 29454535
Brand: Seco
Model #: 02993863
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.8270 |
| Maximum Depth of Cut (Decimal Inch) | 2.2100 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1206 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (mm) | 3.50 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (mm) | 0.63 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 5100 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Coating/Finish | Ni |
