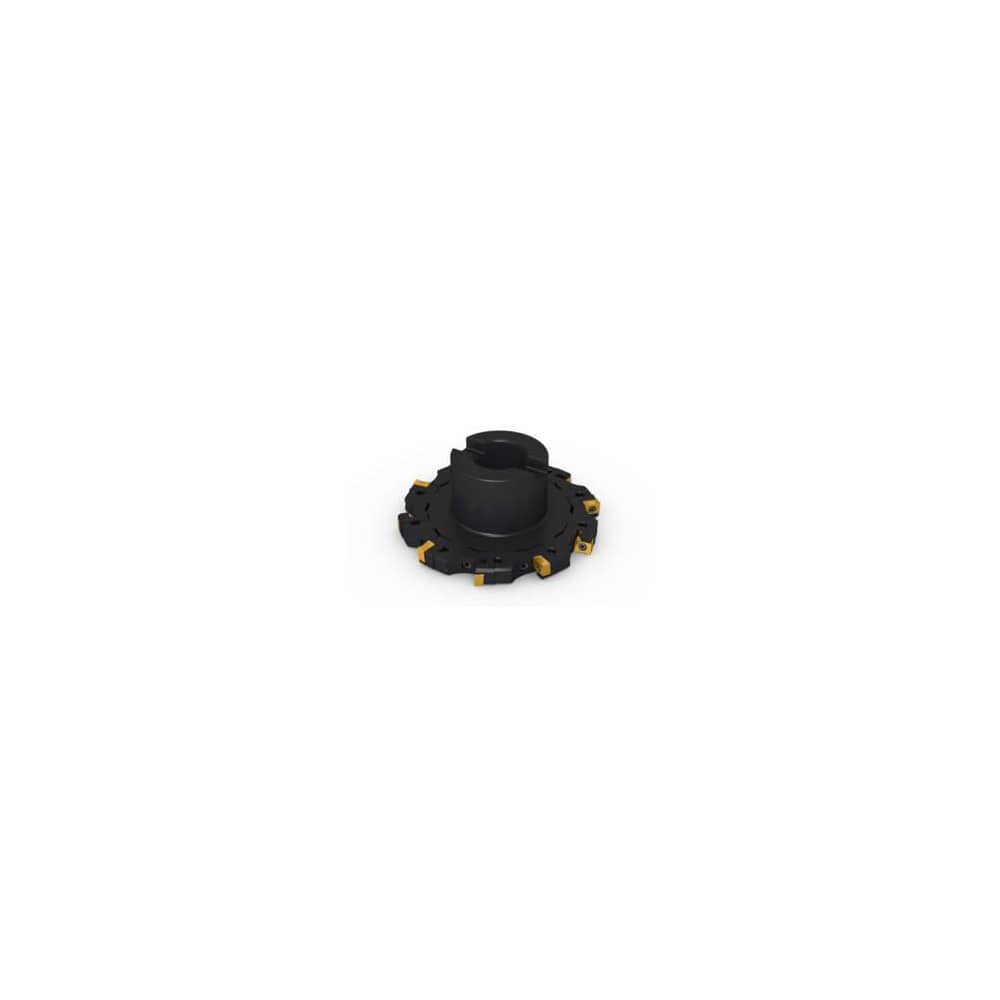

Indexable Slotting Cutter: 0.394'' Cutting Width, 4'' Cutter Dia, Arbor Hole Connection, 1.24'' Depth of Cut, 1'' Hole, Right Hand Cut Screw, Uses 8 LNK Inserts, 4 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 29453867
Brand: Seco
Model #: 02834763
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (Decimal Inch) | 1.2400 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | LNK |
| Compatible Insert Size Code | 504 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Hub Diameter (mm) | 1.88 |
| Keyway Width (mm) | 0.38 |
| Keyway Width (Decimal Inch) | 0.3820 |
| Maximum RPM | 9400 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 4 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
