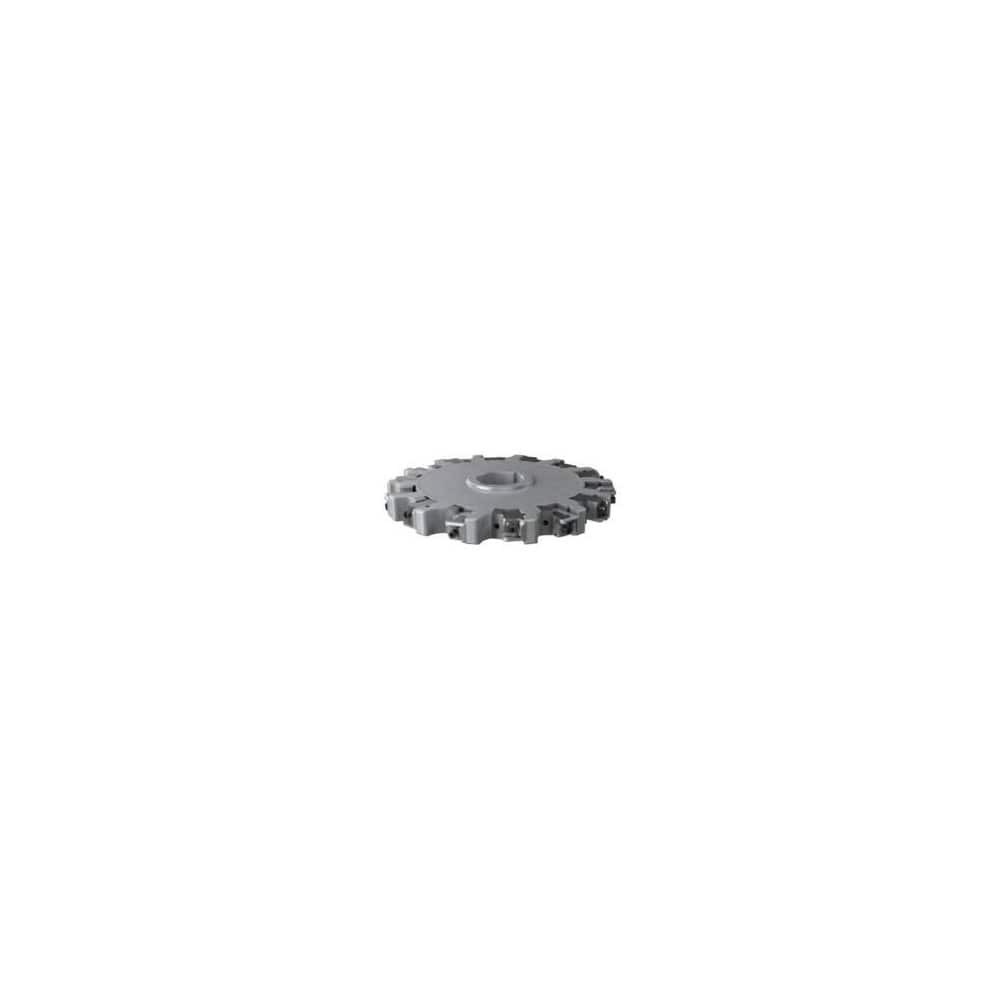

Indexable Slotting Cutter: 32 mm Cutting Width, 250 mm Cutter Dia, Arbor Hole Connection, 88.3 mm Depth of Cut, 50 mm Hole, Right Hand Cut Screw, Uses 14 XNHQ Inserts, 7 Teeth, Staggered, Positive, Steel, Ni Finish
Item #: 29453743
Brand: Seco
Model #: 02827446
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 88.30 |
| Hole Diameter (Mm) ( - 0 Decimals) | 50.00 |
| Cutter Diameter (mm) | 250.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 14 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1707 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (mm) | 69.00 |
| Keyway Width (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 12.0000 |
| Maximum RPM | 3700 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 7 |
| Coolant Through | No |
| Coating/Finish | Ni |
