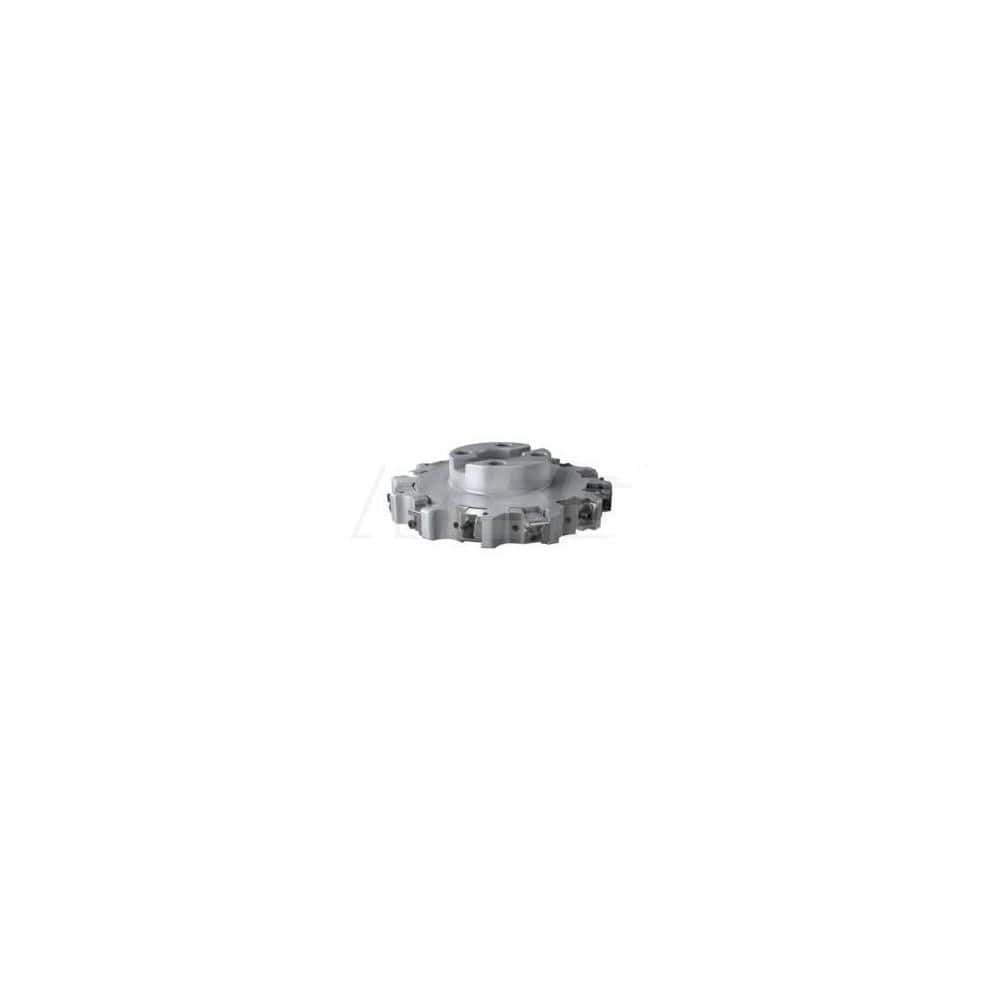

Indexable Slotting Cutter: 32 mm Cutting Width, 200 mm Cutter Dia, Arbor Hole Connection, 54 mm Depth of Cut, 40 mm Hole, Right Hand Cut Screw, Uses 12 XNHQ Inserts, 6 Teeth, Staggered, Positive, Steel, Ni Finish
Item #: 29453693
Brand: Seco
Model #: 02827415
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 54.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (mm) | 200.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1707 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 16.4000 |
| Maximum RPM | 4100 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Coating/Finish | Ni |
