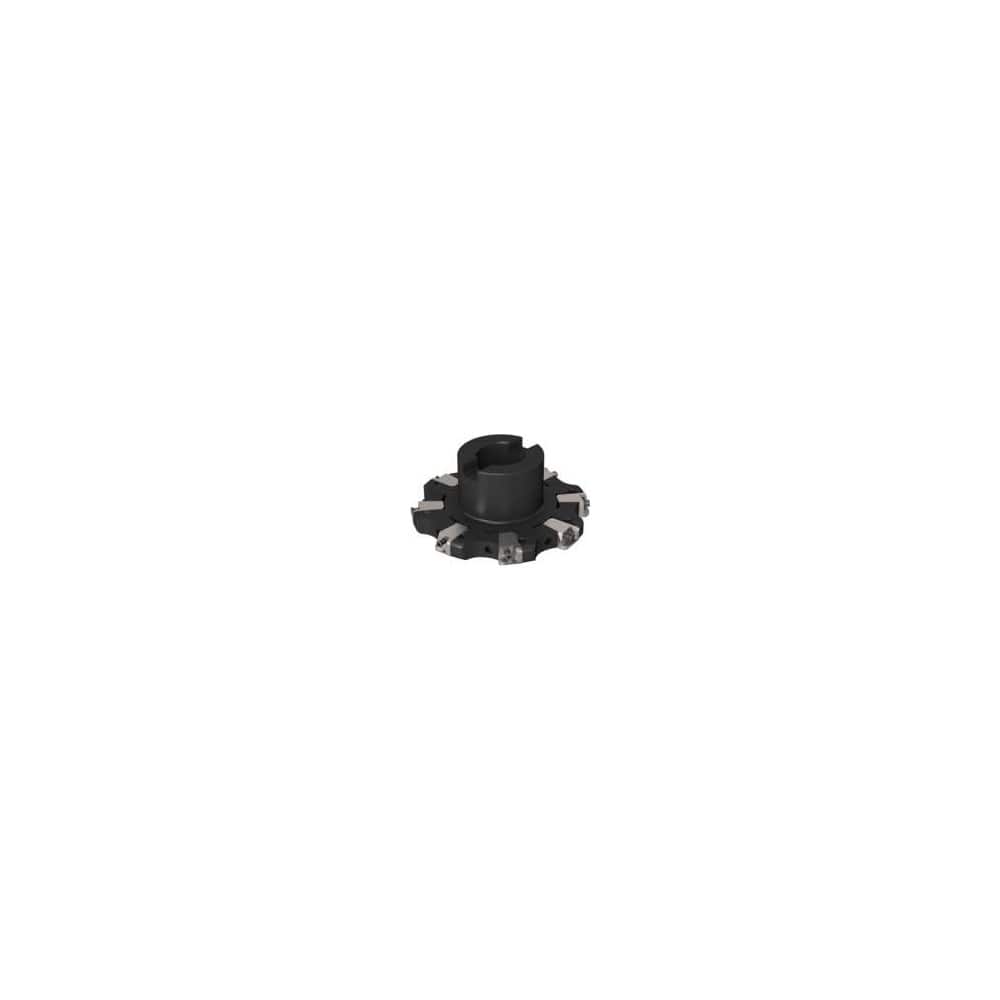

Indexable Slotting Cutter: 0.354'' Cutting Width, 5'' Cutter Dia, Arbor Hole Connection, 1.329'' Depth of Cut, 1.25'' Hole, Right Hand Cut Screw, Uses 8 XNHQ Inserts, 8 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29452620
Brand: Seco
Model #: 02993914
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3540 |
| Maximum Depth of Cut (Decimal Inch) | 1.3290 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 0905 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Hub Diameter (mm) | 2.25 |
| Hub Diameter (Inch) | 2-1/4 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5080 |
| Maximum RPM | 8200 |
| Tool Application | Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 8 |
| Coolant Through | No |
| Coating/Finish | Ni |
