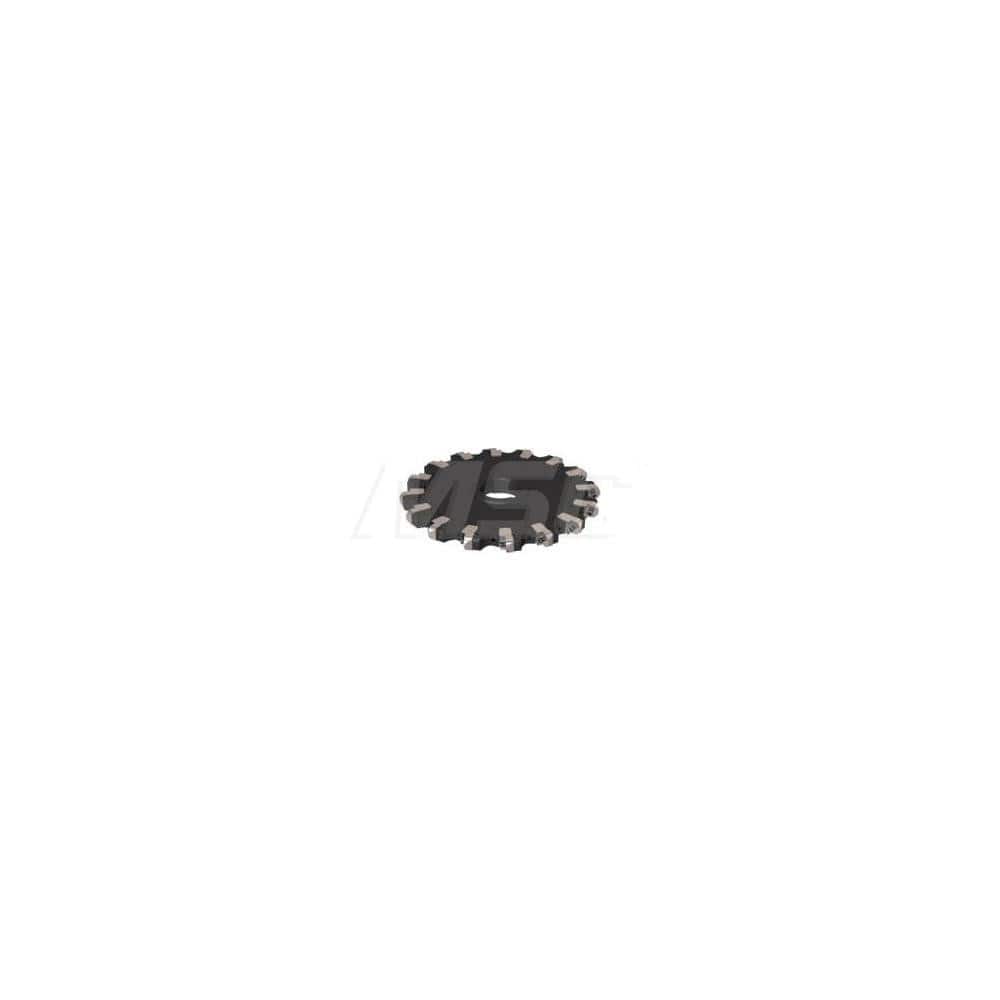

Indexable Slotting Cutter: 0.394'' Cutting Width, 10.197'' Cutter Dia, Arbor Hole Connection, 3.539'' Depth of Cut, 2'' Hole, Right Hand Cut Screw, Uses 16 RP Inserts, 16 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29452521
Brand: Seco
Model #: 02993903
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (Decimal Inch) | 3.5390 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 10.1970 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 16 |
| Compatible Insert Style | RP |
| Compatible Insert Size Code | 2006 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (mm) | 3.00 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 4600 |
| Tool Application | Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 16 |
| Coolant Through | No |
| Coating/Finish | Ni |
