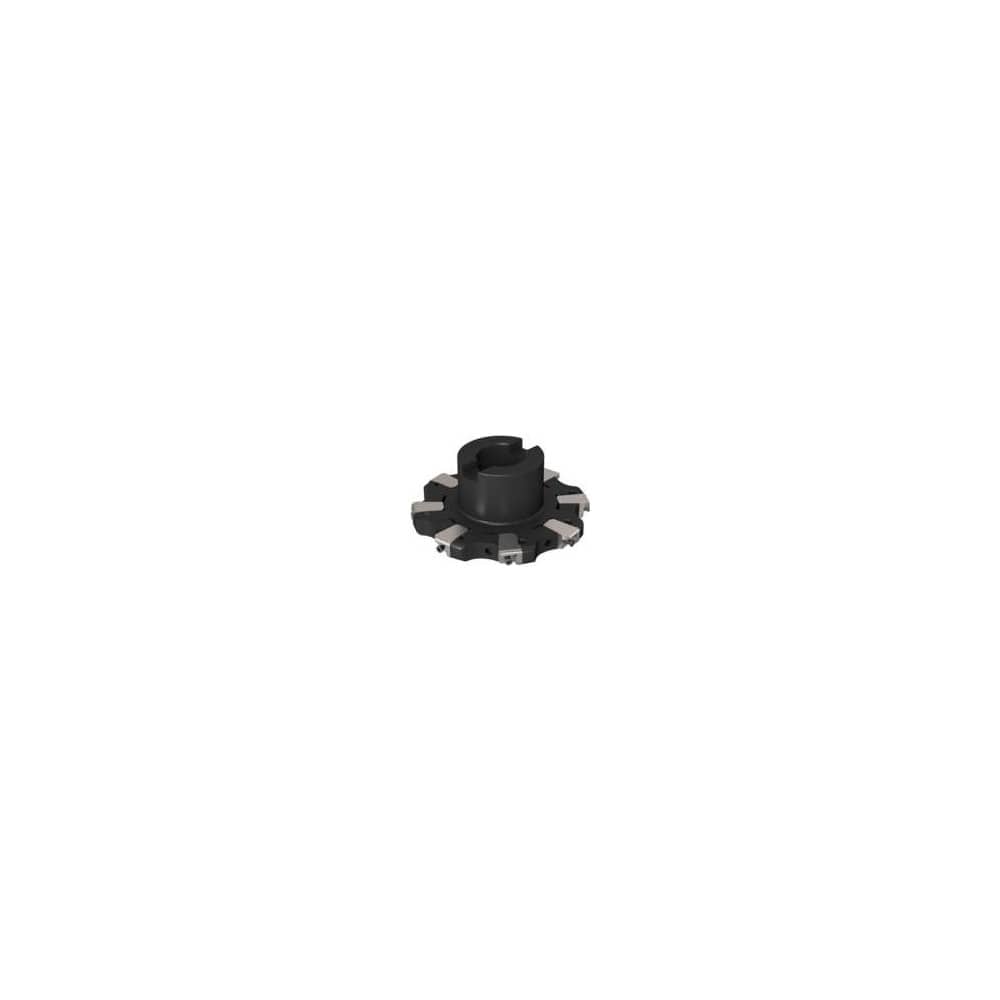

Indexable Slotting Cutter: 9 mm Cutting Width, 125 mm Cutter Dia, Arbor Hole Connection, 32.32 mm Depth of Cut, 32 mm Hole, Right Hand Cut Screw, Uses 8 XNHQ Inserts, 8 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29452018
Brand: Seco
Model #: 02993786
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 9.00 |
| Maximum Depth of Cut (mm) | 32.32 |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.00 |
| Cutter Diameter (mm) | 125.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 0905 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (mm) | 58.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 14.4000 |
| Maximum RPM | 8200 |
| Tool Application | Shouldering |
| Tool Performance | High Performance |
| Number Of Teeth | 8 |
| Coolant Through | No |
| Coating/Finish | Ni |
