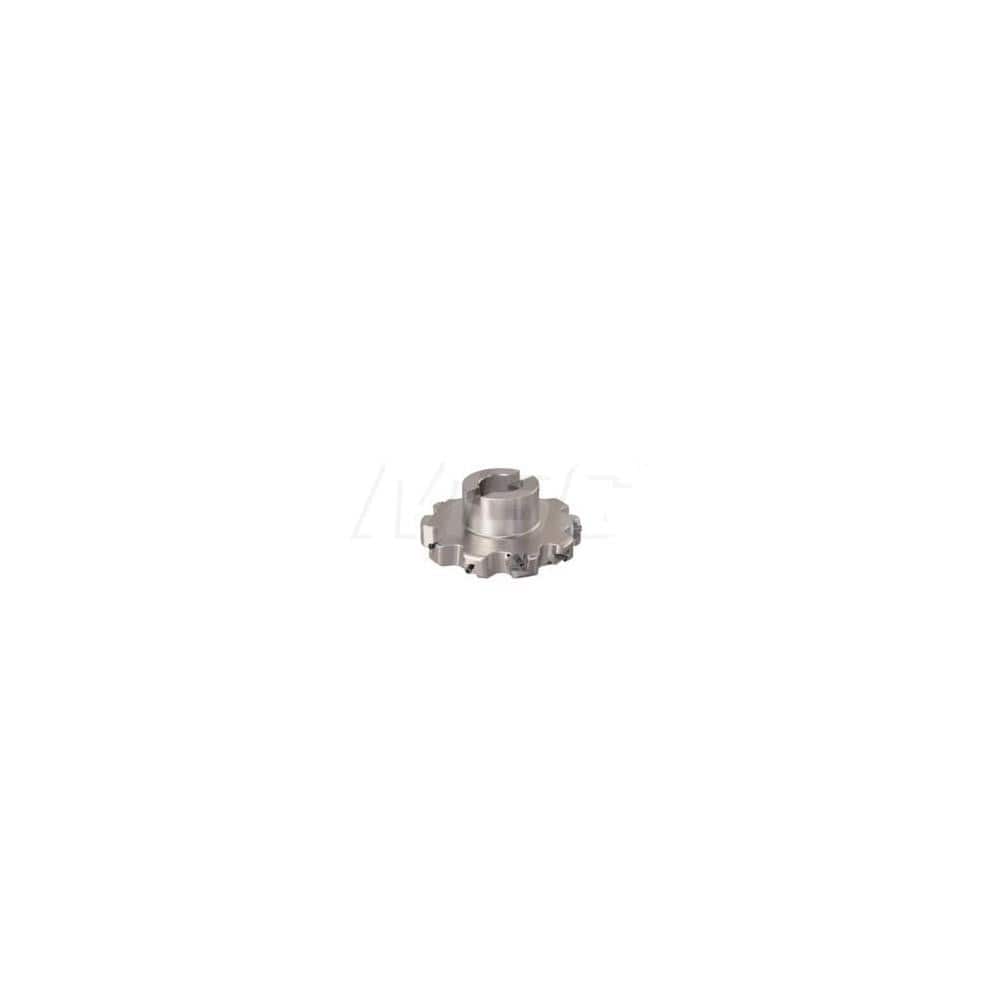

Indexable Slotting Cutter: 0.75'' Cutting Width, 5'' Cutter Dia, Arbor Hole Connection, 1.331'' Depth of Cut, 1.25'' Hole, Right Hand Cut Screw, Uses 10 XNHQ Inserts, 5 Teeth, Staggered, Positive, Through Coolant, Steel, Ni Finish
Item #: 29451408
Brand: Seco
Model #: 02989512
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Inch) | 3/4 |
| Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 1.3310 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1206 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (Decimal Inch) | 2.2830 |
| Hub Diameter (mm) | 2.28 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5080 |
| Maximum RPM | 6500 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 5 |
| Coolant Through | Yes |
| Coating/Finish | Ni |
