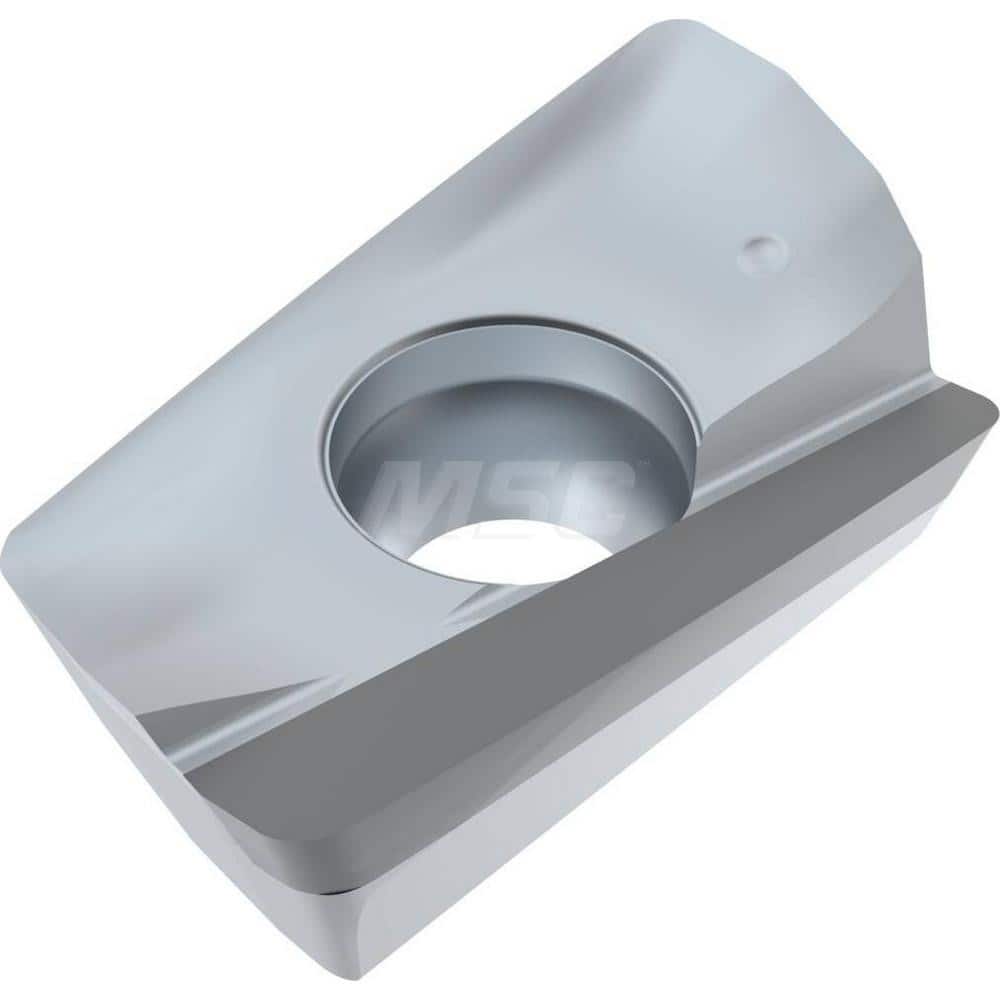

Item #: 29448750
Brand: Seco
Model #: 10008706
Product Specifications
| Insert Style | XOEX |
| Insert Size Code | 160508 |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | PCD20 |
| Inscribed Circle (Decimal Inch) | 0.4020 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.20 |
| Series | R217/220.69-16 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Number Of Cutting Edges | 1 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6180 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | N |
| Ansi Code | XOEX160508F |
| Iso Code | XOEX160508F |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2280 |
