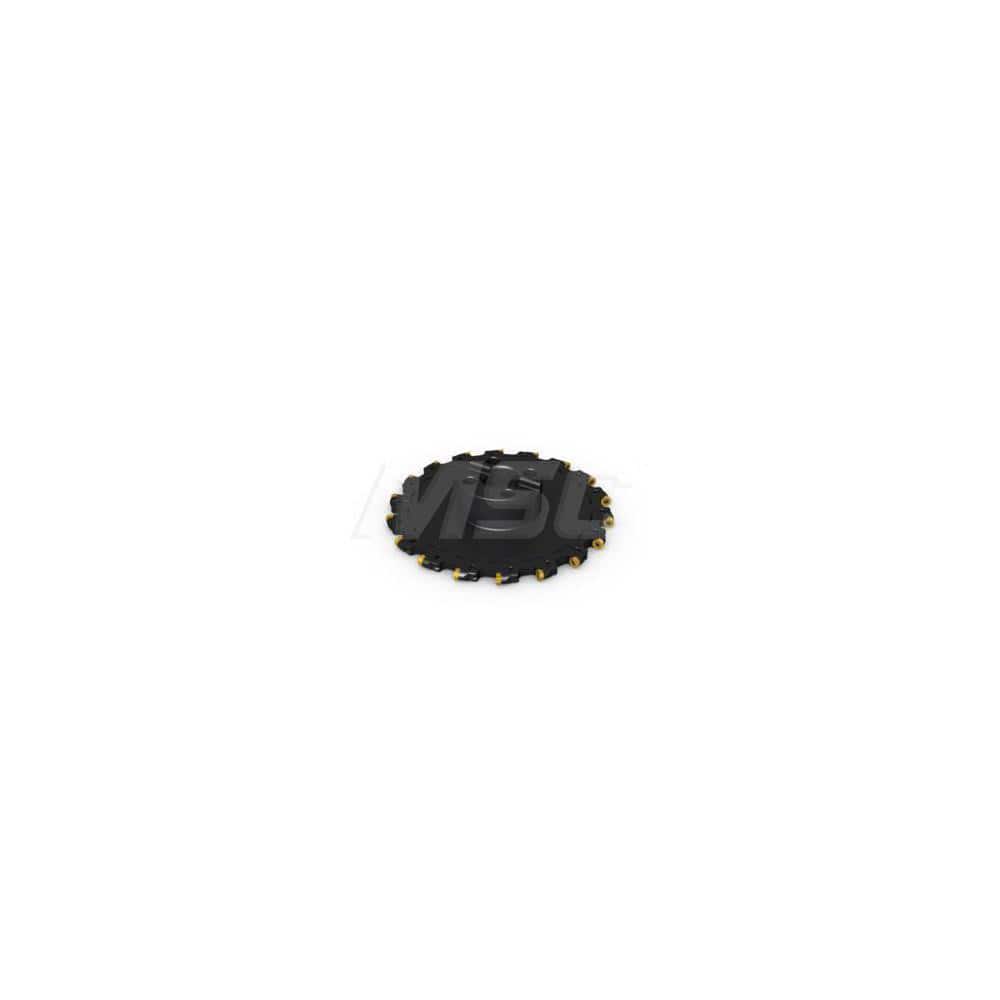

Indexable Slotting Cutter: 0.472'' Cutting Width, 10'' Cutter Dia, Arbor Hole Connection, 3.209'' Depth of Cut, 1.5'' Hole, Right Hand Cut Screw, Uses 18 RD Inserts, 9 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 29446176
Brand: Seco
Model #: 02741583
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Depth of Cut (Decimal Inch) | 3.2090 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 10.0000 |
| Cutter Diameter (Inch) | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | RD |
| Compatible Insert Size Code | 10T3 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (mm) | 3.50 |
| Hub Diameter (Inch) | 3-1/2 |
| Keyway Width (mm) | 0.63 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6000 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 9 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
