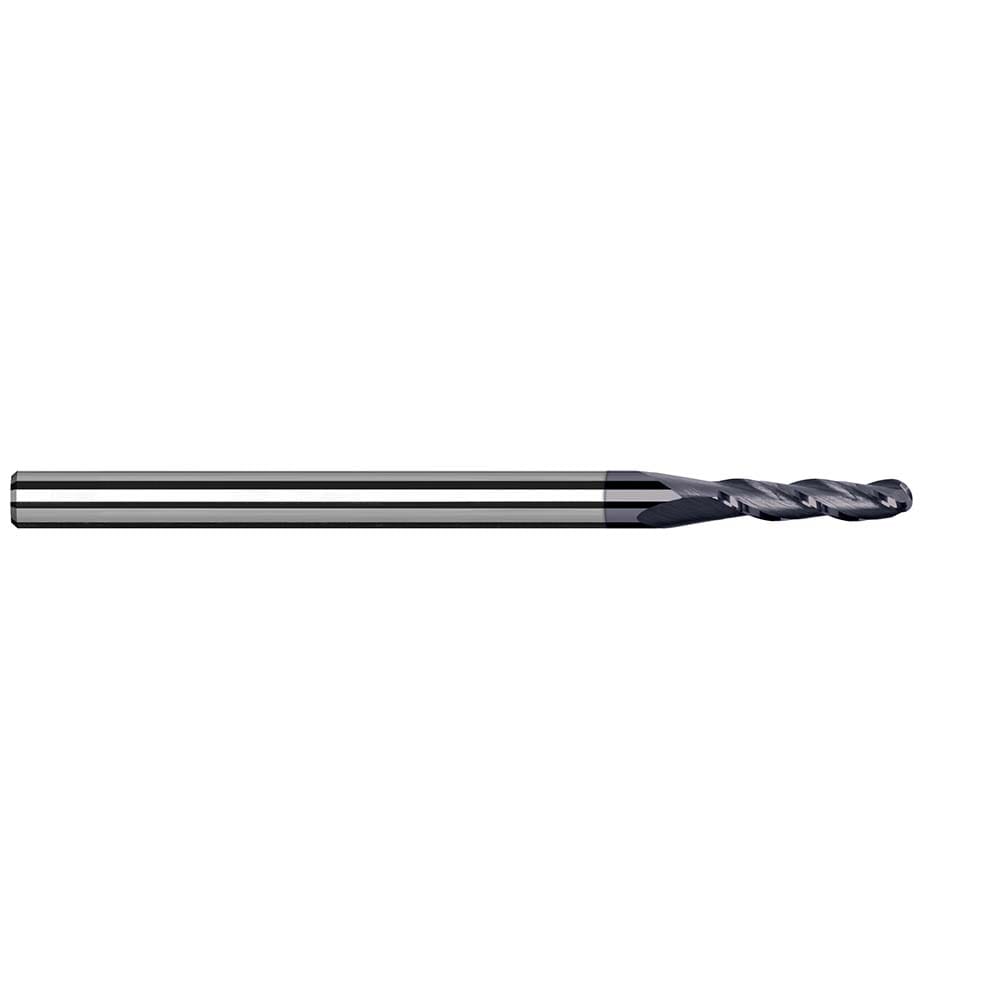

Ball End Mill: 5.00 mm Dia, 15.00 mm LOC, 4 Flute, Solid Carbide
Item #: 06483887
Brand: Harvey Tool
Model #: 975364-C6
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 15.00 |
| Coating/Finish | AlTiN Nano |
| Extended Reach | No |
| Variable Helix | Yes |
| Variable Index | No |
| Helix Angle | 34 |
| Overall Length (mm) | 63.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Standard |
| Helix Style | Variable |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (mm) | 2.50 |
| Reach Length (mm) | 15.00 |
| Mill Diameter Tolerance | +0.00/-0.04 mm |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; H; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Variable Helix End Mills for High Temp Alloys - Ball, Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Manufacturers Catalog Number | 975364-C6 |
| System Of Measurement | Metric |
