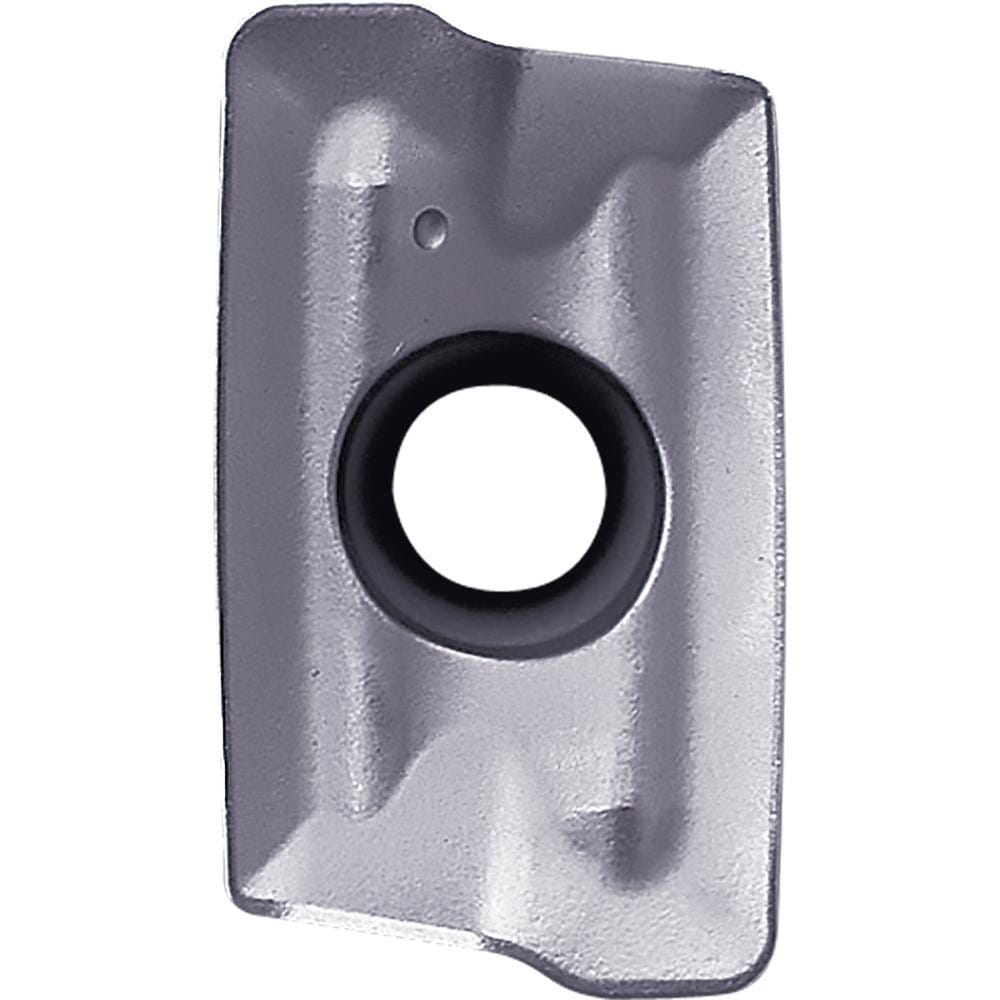

Milling Insert: BDMT170404ER-JT PR1810, Carbide
Item #: 86815446
Brand: Kyocera
Model #: TLS00025
Product Specifications
| Insert Style | BDMT |
| Insert Size | 170404 |
| Insert Material | Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1929 |
| Thickness (mm) | 4.9000 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 18.000 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | MEC Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Cutting Edge Effective Length (mm) | 17.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6693 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | BDMT170404ERJTPR1810 |
| Iso Code | BDMT170404ER-JT |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT170404ERJTPR1810 |
| Chip Breaker | ER-JT |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Width (mm - 2 Decimals) | 9.60 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
