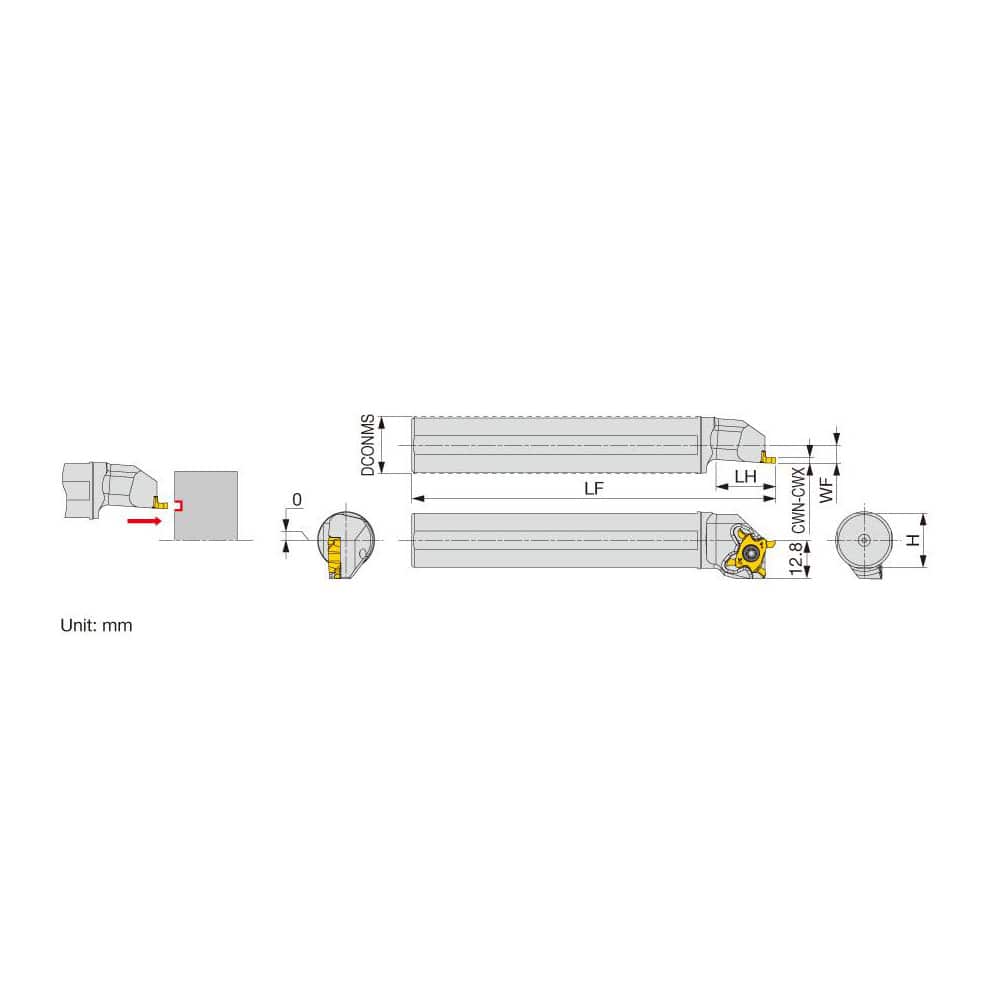

Indexable Grooving Toolholder: JS254X-STCFL18, 0.1180″ Max Groove Width 0.1378″ Max Depth, Uses 18 Inserts, 0.9650″ Shank Height, No
Item #: 29160967
Brand: Tungaloy
Model #: 6795086
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 18 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Minimum Groove Width (Decimal Inch) | 0.0130 |
| Toolholder Style | JS-STCF |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 18 |
| Shank Height (Decimal Inch) | 0.9650 |
| Series | JS-STCF |
| Shank Length (Decimal Inch) | 3.9370 |
| Overall Length (Decimal Inch) | 4.7200 |
| Multi-use Tool | No |
| Cutting Tool Application | Face Grooving |
| Center to Cutting Edge (Decimal Inch) | 0.2360 |
| Head Length (Decimal Inch) | 0.7870 |
| Toolholder Material | Steel |
| Coolant Through | No |
