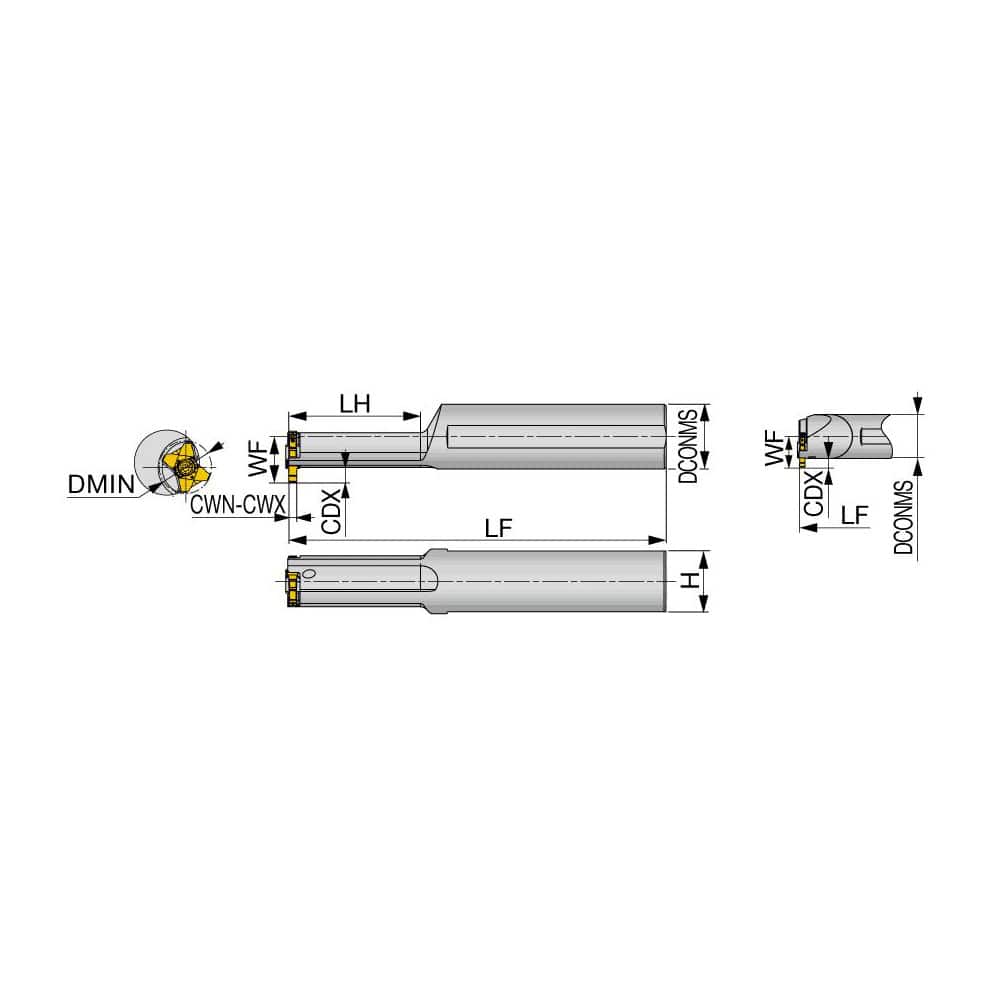

Indexable Grooving Toolholder: A12H-STCIL10-D120, Uses 10 Inserts, Through Coolant
Item #: 29159654
Brand: Tungaloy
Model #: 6842838
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 10 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 2.50 |
| Toolholder Style | A-STCI |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 10 |
| Shank Height (mm) | 11.00 |
| Series | A-STCI |
| Shank Length (mm) | 70.00 |
| Overall Length (mm) | 100.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (mm) | 8.30 |
| Minimum Hole Diameter (Decimal Inch) | 12.0000 |
| Head Length (mm) | 30.00 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
