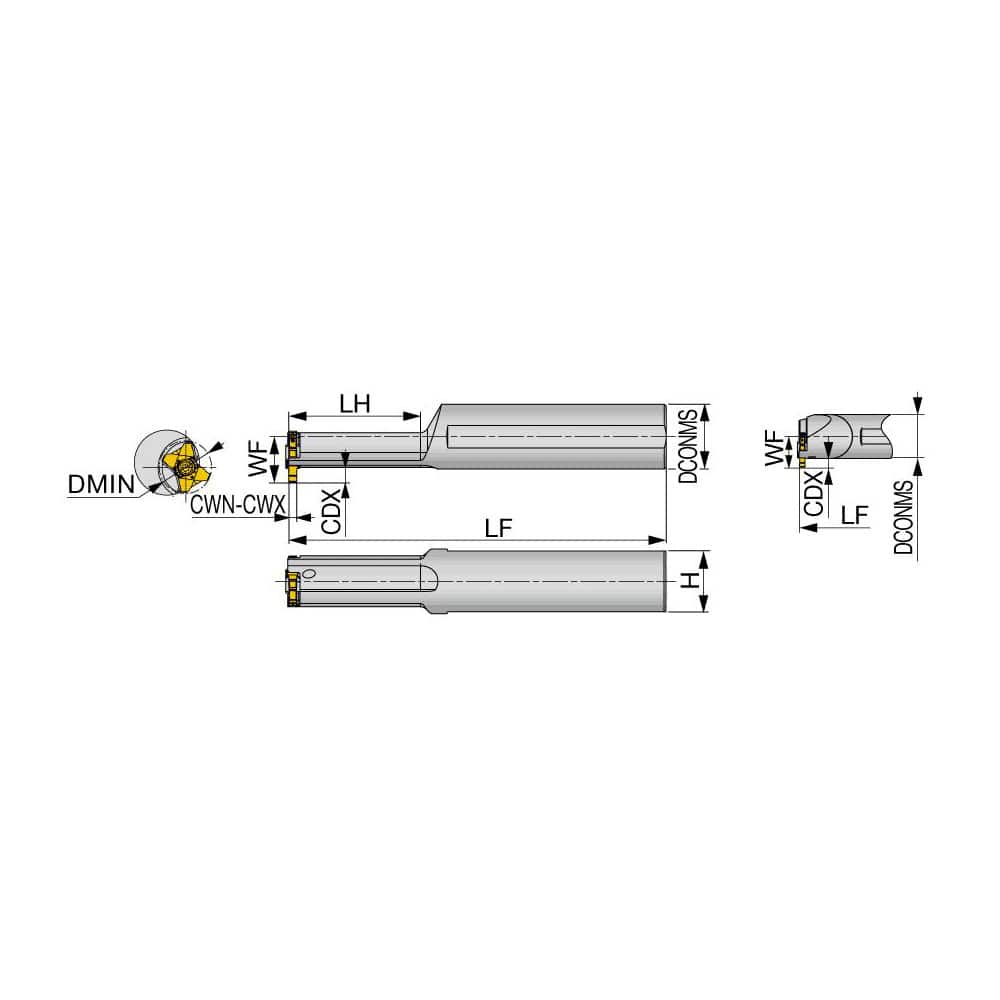

Indexable Grooving Toolholder: A08-STCIL10-D08U, 0.0980″ Max Groove Width Uses 10 Inserts, 0.4750″ Shank Height, Through Coolant
Item #: 29159472
Brand: Tungaloy
Model #: 6842858
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 10 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | A-STCI |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 10 |
| Shank Height (Decimal Inch) | 0.4750 |
| Series | A-STCI |
| Shank Length (Decimal Inch) | 2.8190 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 0.3390 |
| Minimum Hole Diameter (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 1.1810 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
