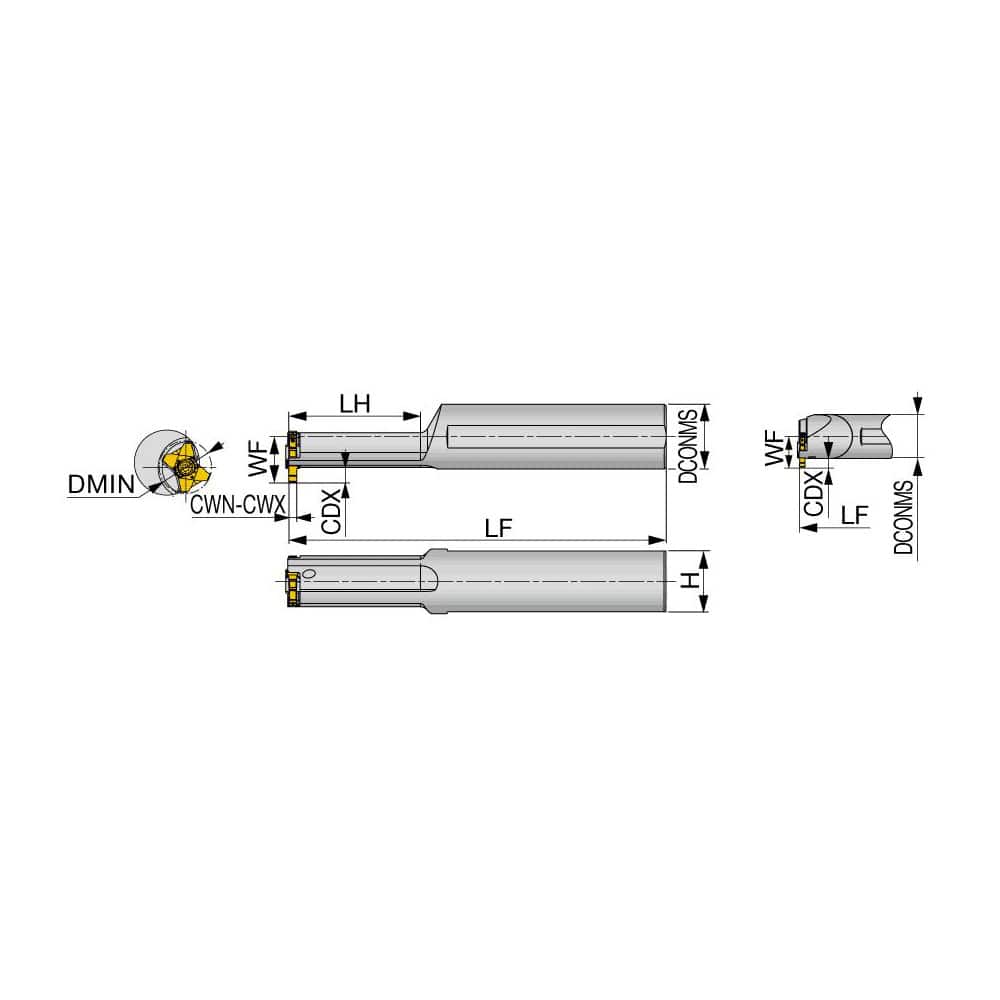

Indexable Grooving Toolholder: E08-STCIL10-D10U, 0.0980″ Max Groove Width Uses 10 Inserts, 0.4750″ Shank Height, Through Coolant
Item #: 29158557
Brand: Tungaloy
Model #: 6842891
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 10 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | E-STCI |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 10 |
| Shank Height (Decimal Inch) | 0.4750 |
| Series | E-STCI |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 0.3390 |
| Minimum Hole Diameter (Decimal Inch) | 0.6250 |
| Toolholder Material | Solid Carbide |
| Coolant Through | Yes |
